GZY-CT8

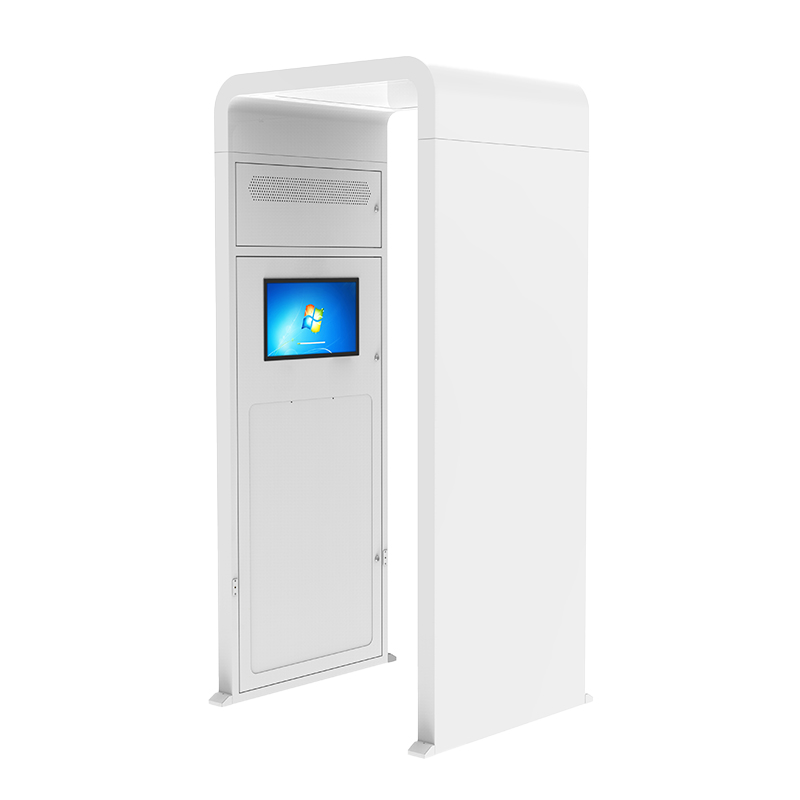

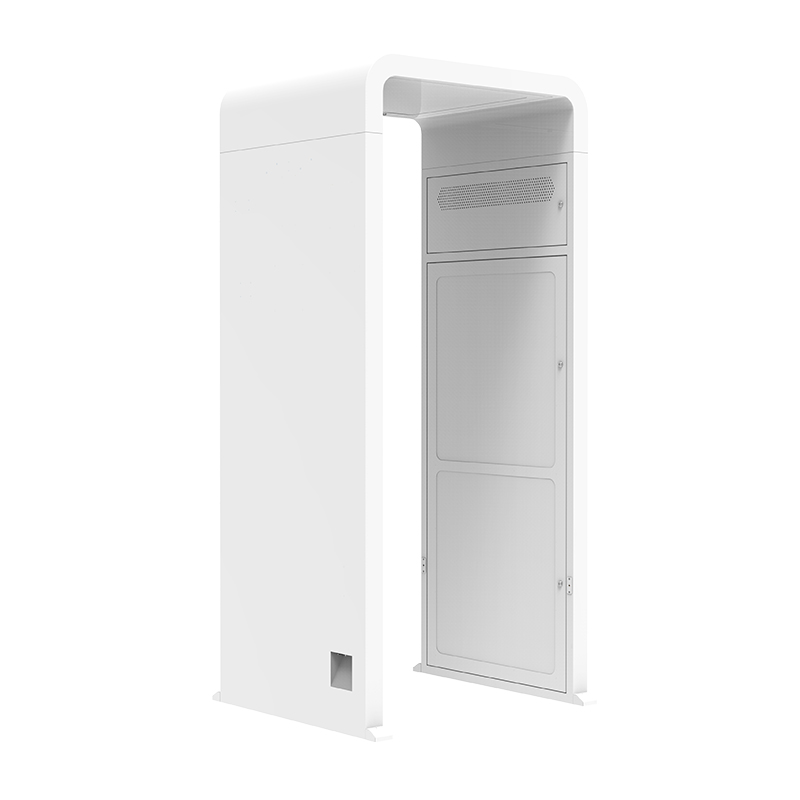

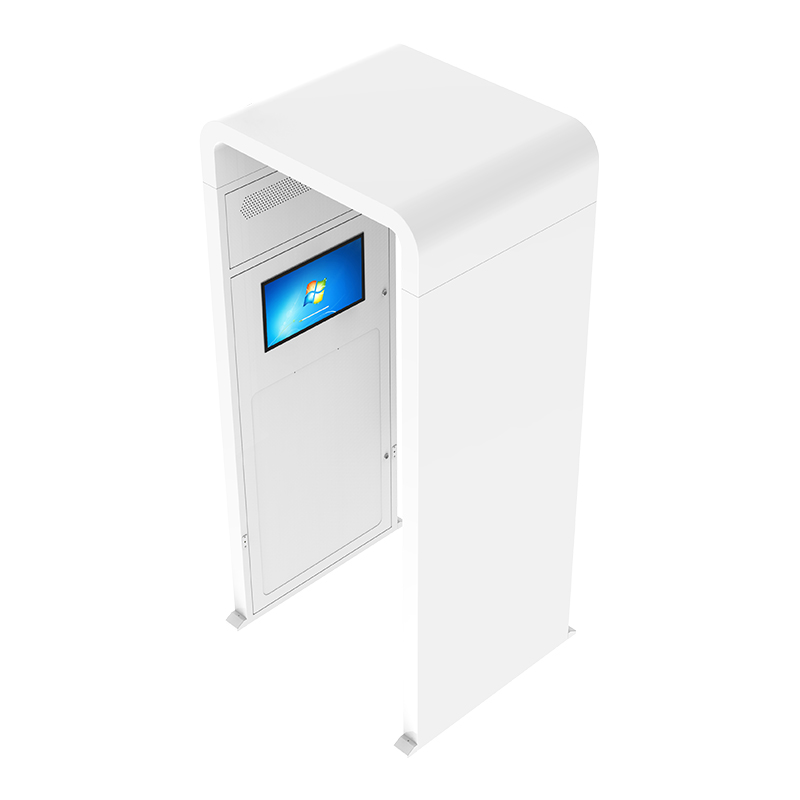

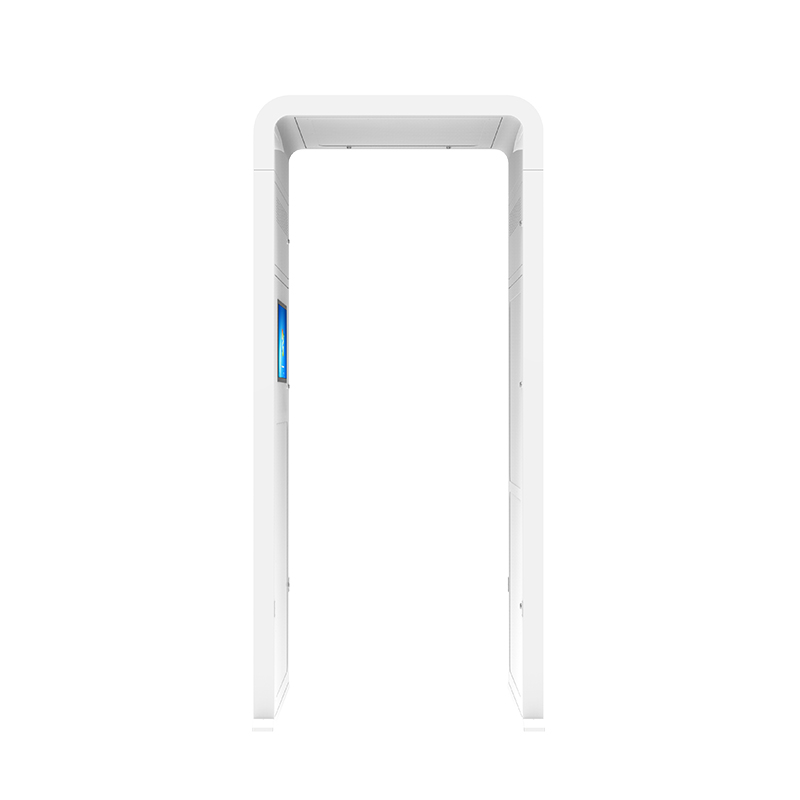

Vertical Arch-Shaped RFID Access Gate
Large arch design, equipped with a 21.5-inch touch screen, supports rapid identification of multiple labels and statistics of entry and exit. The reading distance can be adjusted, suitable for outdoor or indoor environments such as logistics parks and large warehouses that require wide passageways and high-intensity identification.
/
Vertical Arch-Shaped RFID Access Gate
Features
-
Efficient and Accurate Multi-Tag Identification -
Wide Gate Design for Passage Applications -
Audible & Visual Anti-Theft Alarm -
ISO 18000-6C Protocol -
21.5-inch Screen Real-Time Display -
Integrated Audible & Visual Alarm Design
Specifications
-
RFID Performance
RFID Frequency 865-868Mhz /902-928Mhz(customized) Air Interface Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C Reader Chip IMPINJ E710 RF Output 0-30dBm(adjustable) Inventory Tag Peak Speed > 200 Pcs/Second
Alarm LED Indicator Way of Working Automatic mode, trigger mode, interactive mode, etc. System Support Windows / Android (optional)
Hardware N29 CPU, 2G RAM, 32G ROM,RK3288 CPU, 2G RAM, 8G ROM (optional)
Application Software interface(SDK) Provide with API SDK and C#, Java application routines Output Power Accuracy +/- 1dB
Input Power Accuracy +/- 0.2dB -
Physical Performance
Dimensions 2270mm*1041mm*850mm Power Supply AC110-220V 50Hz 150W Metrial Carbon steel plate Humidity 5% to 95%, non-condensing
Operating Temp. -10℃ to +60℃ Storage Temp. -20℃ to +70℃ Weight 100KG
Applications
