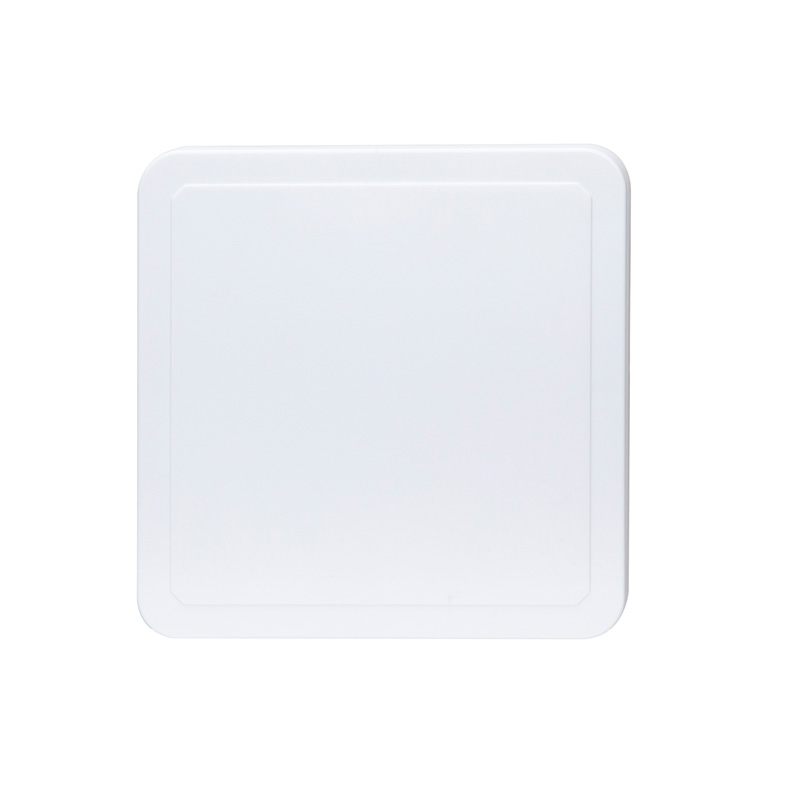

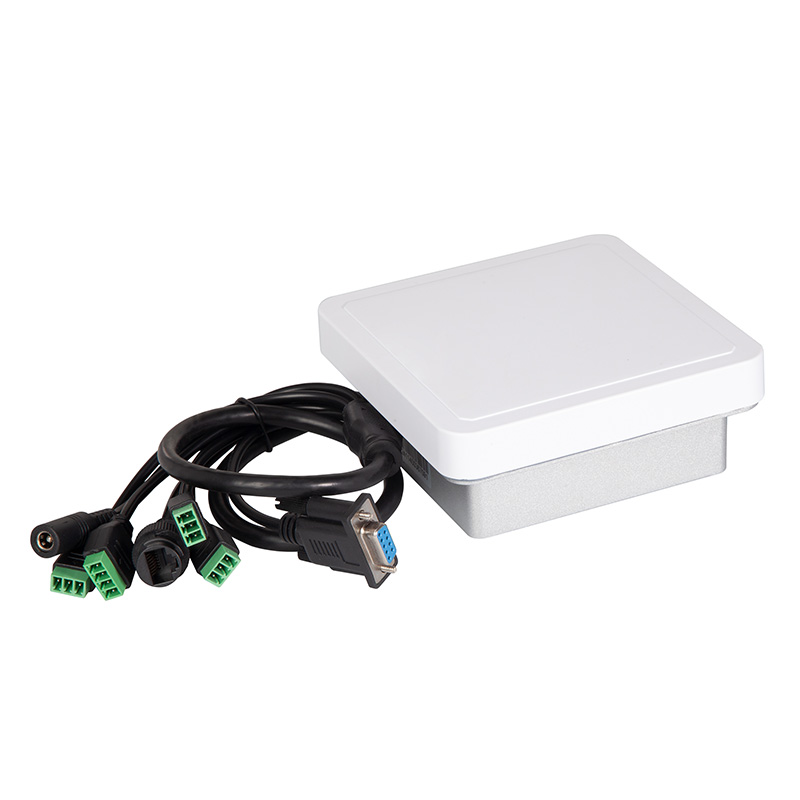

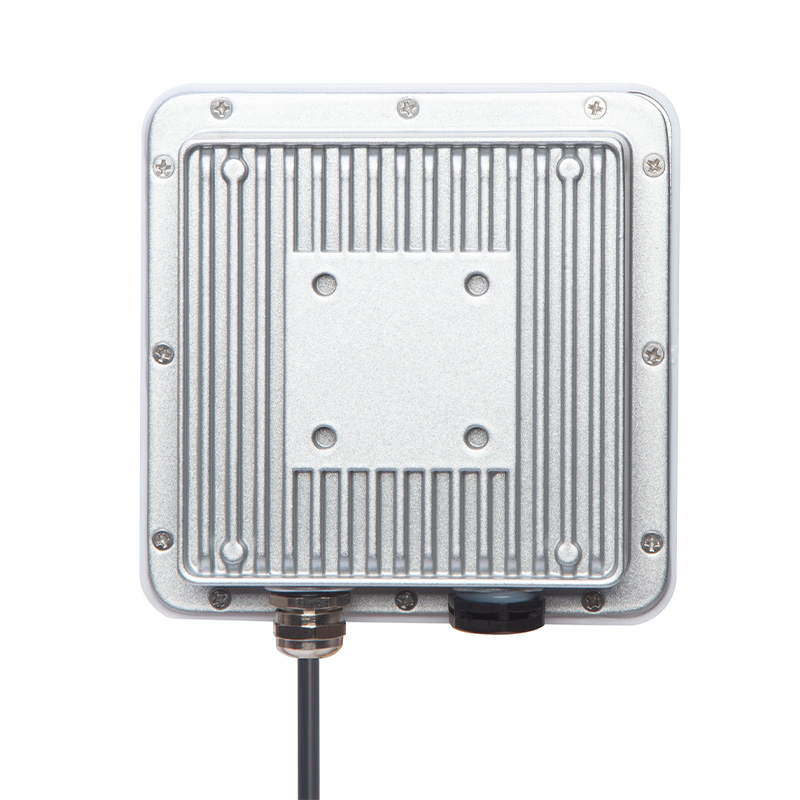

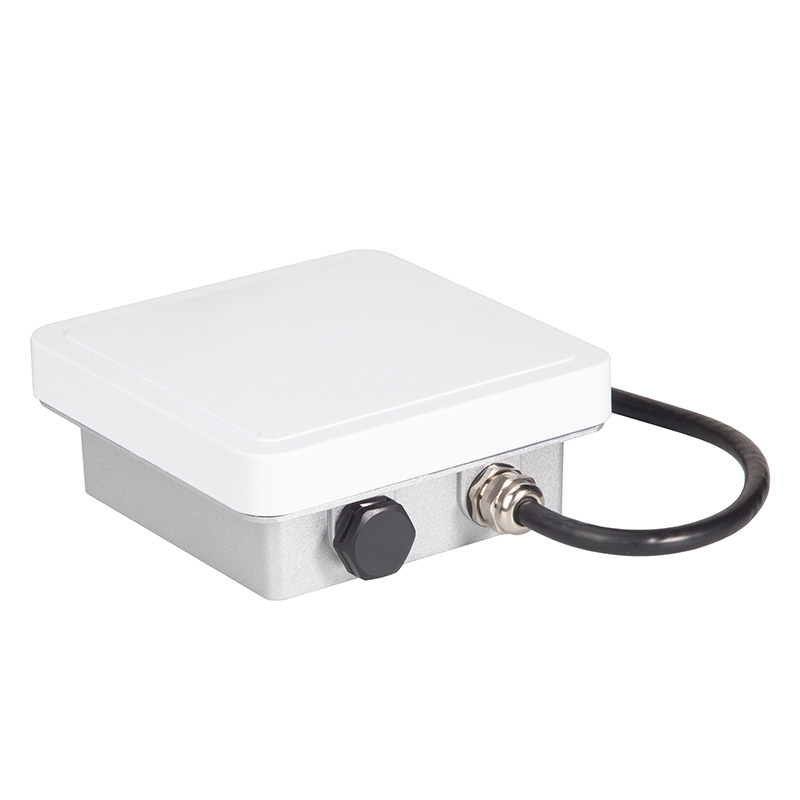

GZY-E606
Access Control UHF RFID Reader
It is a high-performance, all-weather device that supports the EPC C1G2 protocol standard. It features excellent multi-tag anti-collision capabilities and multiple working modes (such as automatic and trigger mode), with a long reading distance, stable performance and high protection level.It can be widely applied in RFID fields such as vehicle access control, non-stop toll collection, logistics monitoring and industrial production lines.
/
Access Control UHF RFID Reader
Features
-
24/7 Continuous Operation -
ISO18000-6B/6C -
IP65 -
Mode: Auto, Trigger, and Interactive -
10-Meter for Vehicles/Logistics -
TCP/IP, RS485, and Wiegand
Specifications
-
RFID Performance
RFID Frequency 860-865Mhz /902-928Mhz（Can be customized） Air Interface Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C Reader Chip IMPINJ R2000 / E710 / TM600 RF output 0 – 33 dBm（adjustable）adjustable 4dbi antenna built-in
Reading Distance 1-3m (depens on tags performance) Communication interface TCP/IP、RS232、RS485、Wiegand26/34 interface Application software interface Provide API development kit and application routines Support RSSI Support Antenna Parameters 5dBi Circularly Polarized Antenna (built-in)
Way of Working Automatic mode, trigger mode, interactive mode, etc. Input/Output (GPIO) 2-way input, 2-way output (optional) Output Power Accuracy +/- 1dB
Input Power Accuracy +/- 0.2dB Receiving Sensitivity < -85 dBm
-
Physical Performance
Dimensions 139.5mm(L) x 130mm(W) x51.8mm(H) Power supply With 220V AC input, the output of +12 V/3A DC power converter Metrial ABS + aluminum alloy
Weight 1 Kg Humidity 5% to 95%, non-condensing Protection class IP67 Working temp -20℃ to +70℃ Storage temp -30℃ to +85℃ Heat dissipation method Air cooling
Applications
