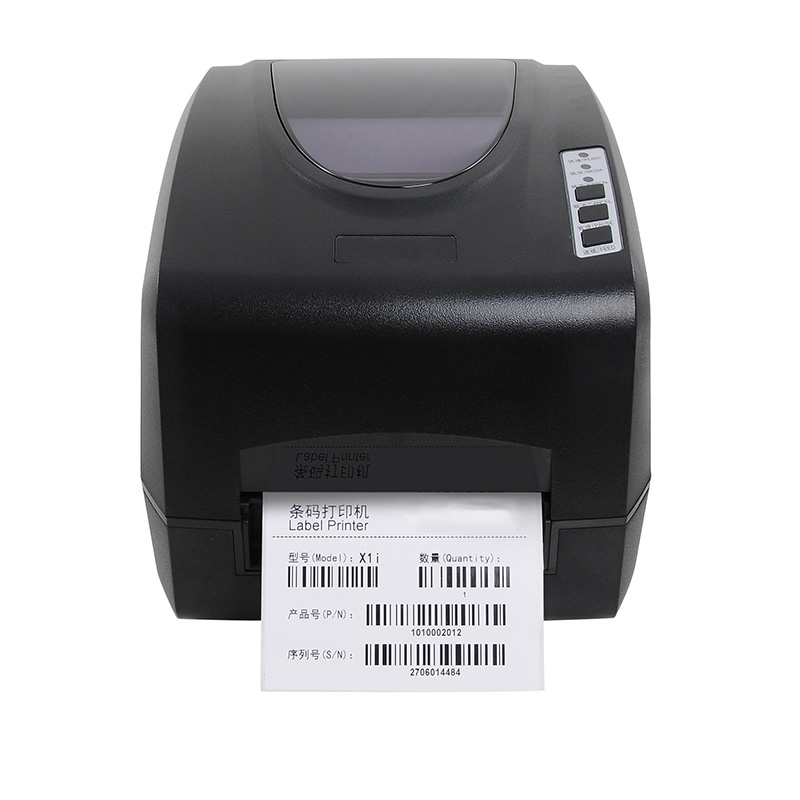

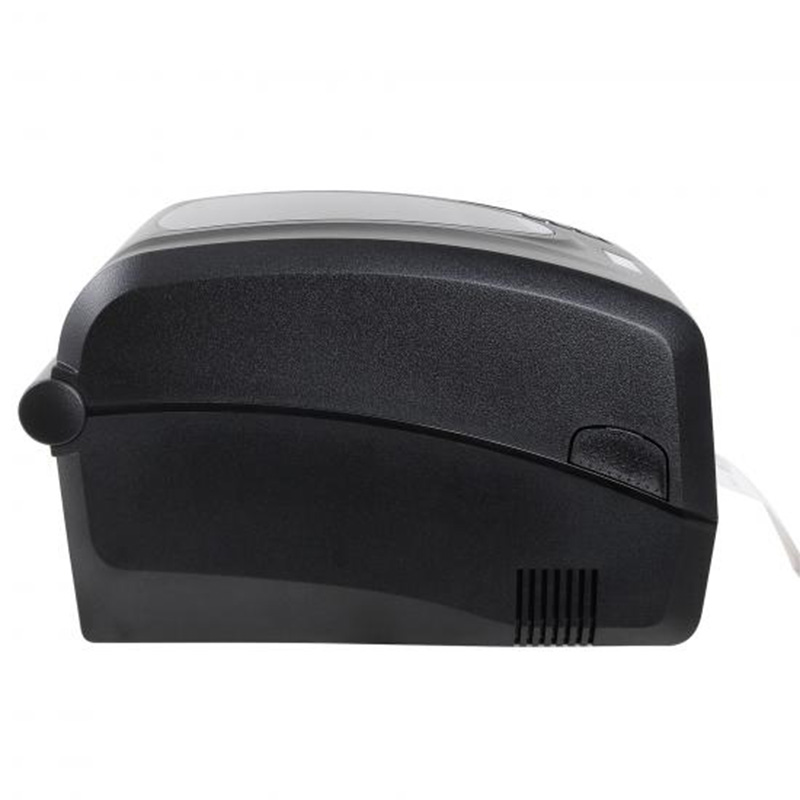

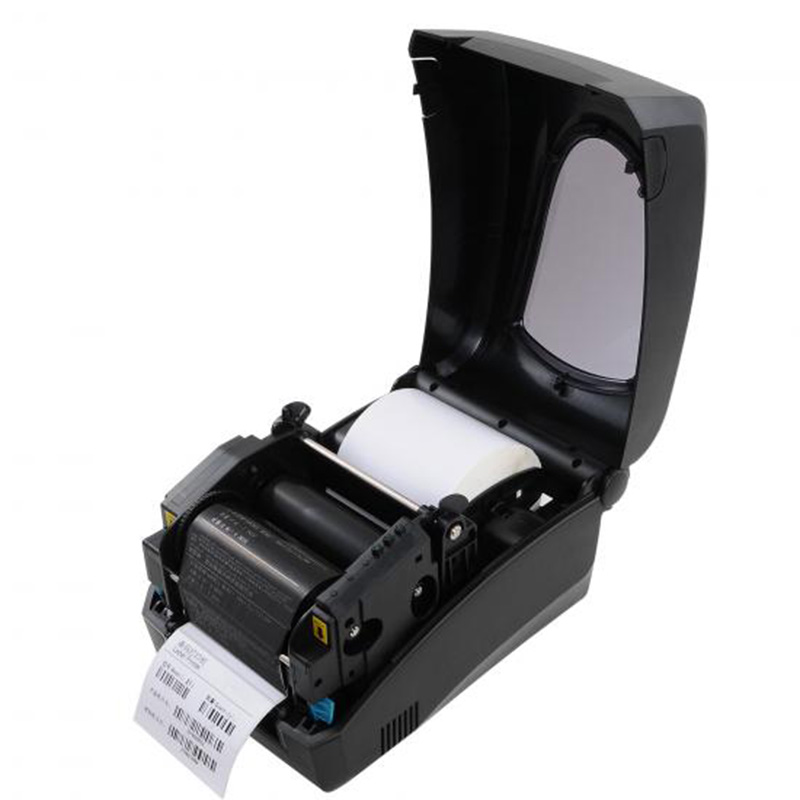

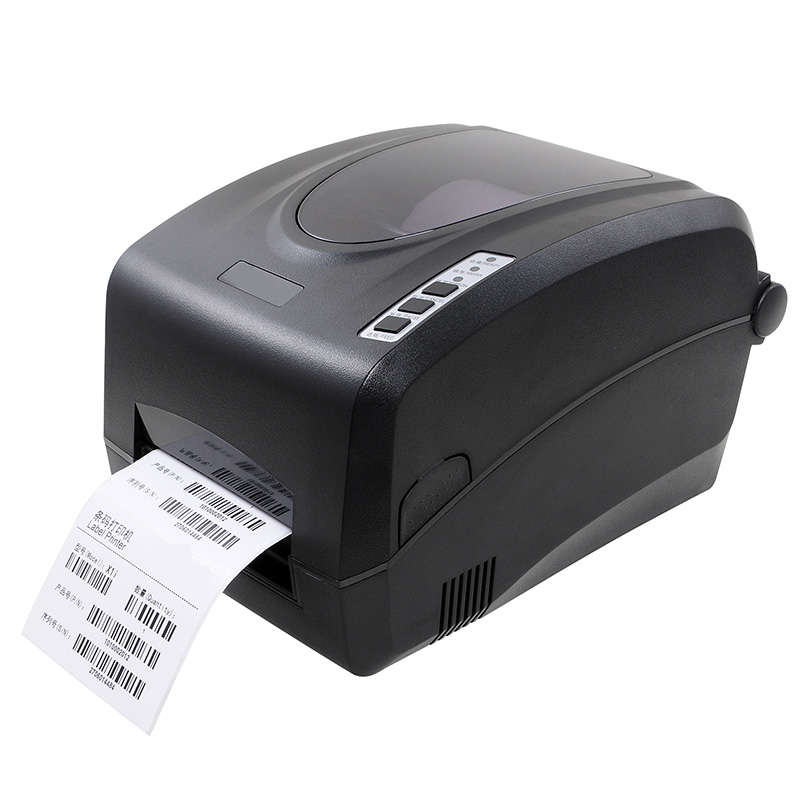

GZY-77
UHF RFID Printer
INFOWISE compact UHF RFID printer integrates high-speed printing, precision encoding, and smart error correction. Supporting ISO18000-6C, it captures TID/EPC data in real-time for barcode printing. Intelligent algorithms prevent encoding errors and auto-mark defective tags. Featuring unique one-key calibration, it effortlessly adapts to any label, making it ideal for space-constrained, high-intensity operations."
/
USB RFID Desktop Reader/Writer
Features
-
High-speed printing & encoding -
ISO18000-6C（EPC G2） -
Real-time TID/EPC capture -
Smart error correction -
One-key label calibration -
Compact & industrial-ready design
Specifications
-
SPECIFICATIONS--P300
Printing method Direct thermal & Thermal transfer
Resolution 203 DPI (8dots/mm)
Maximum print speed 8 IPS(203.2mm/s) Maximum print width 4.25″(108mm) Maximum print length 157.5″（4000mm）
Memory 8 MB Flash ROM, 16 MB SDRAM Media Roll-feed, die-cut, continuous, fan-fold, tags, tickets in plain paper or thermal paper Width：4.6″（118mm） max.,0.8″（20mm）min. Supply roll: OD 5″(127mm) max., ID 1″(25.4mm) min. Thickness: 0.06～1.5mm(0.002″～0.06″), including liner, support flexible on-metal tag.
Ribbon Wax, Wax/Resin, Resin Ribbon roll: OD 2.75″(70mm) max. with ID 1″(25.4mm) core or ID 0.5″(12.7mm) core Max width: 110mm; Max length: 300M Media sensor Adjustable reflective & Transmissive RFID function Integrated high performance RFID reader/encoder supports tags compatible with UHF EPC Gen 2/ISO 18000-6c.
Bar Code Types 1D Barcode : Code 39，Code 93，Code 128，Codabar，EAN-8/13/128，Interleave 2 of 5，UCC-128，UPC A/E 2 and 5 add-on, etc. 2D Barcode : Data Matrix, MaxiCode, PDF417,QR, etc. Interfaces RS-232, USB 2.0, LAN Power rating 24 VDC, 2.0 A Weight 2.62KG Dimensions W208 x D310 x H195 mm
Operation environment Temperature: 32° F ~ +104° F (0° C ~ 40° C) Relative humidity: 5% - 85% non condensing Storage environment Temperature: -40° F ~ +140° F (-40° C ~ 60° C) Relative humidity: 5% - 85% non condensing -
SPECIFICATIONS--P300A
Printing method Direct thermal & Thermal transfer
Resolution 300 DPI(11.8dots/mm) Maximum print speed 6 IPS(152.4mm/s) Maximum print width 4.15″ (105.6mm) Maximum print length 78.7″（2000mm） Memory 8 MB Flash ROM, 16 MB SDRAM Media Roll-feed, die-cut, continuous, fan-fold, tags, tickets in plain paper or thermal paper Width：4.6″（118mm） max.,0.8″（20mm）min. Supply roll: OD 5″(127mm) max., ID 1″(25.4mm) min. Thickness: 0.06～1.5mm(0.002″～0.06″), including liner, support flexible on-metal tag.
Ribbon Wax, Wax/Resin, Resin Ribbon roll: OD 2.75″(70mm) max. with ID 1″(25.4mm) core or ID 0.5″(12.7mm) core Max width: 110mm; Max length: 300M
Media sensor Adjustable reflective & Transmissive RFID function Integrated high performance RFID reader/encoder supports tags compatible with UHF EPC Gen 2/ISO 18000-6c.
Bar Code Types 1D Barcode : Code 39，Code 93，Code 128，Codabar，EAN-8/13/128，Interleave 2 of 5，UCC-128，UPC A/E 2 and 5 add-on, etc. 2D Barcode : Data Matrix, MaxiCode, PDF417,QR, etc.
Interfaces RS-232, USB 2.0, LAN
Power rating 24 VDC, 2.0 A
Weight 2.62KG
Dimensions W208 x D310 x H195 mm
Operation environment Temperature: 32° F ~ +104° F (0° C ~ 40° C) Relative humidity: 5% - 85% non condensing Storage environment Temperature: -40° F ~ +140° F (-40° C ~ 60° C) Relative humidity: 5% - 85% non condensing
Applications
