GZY-T0505A

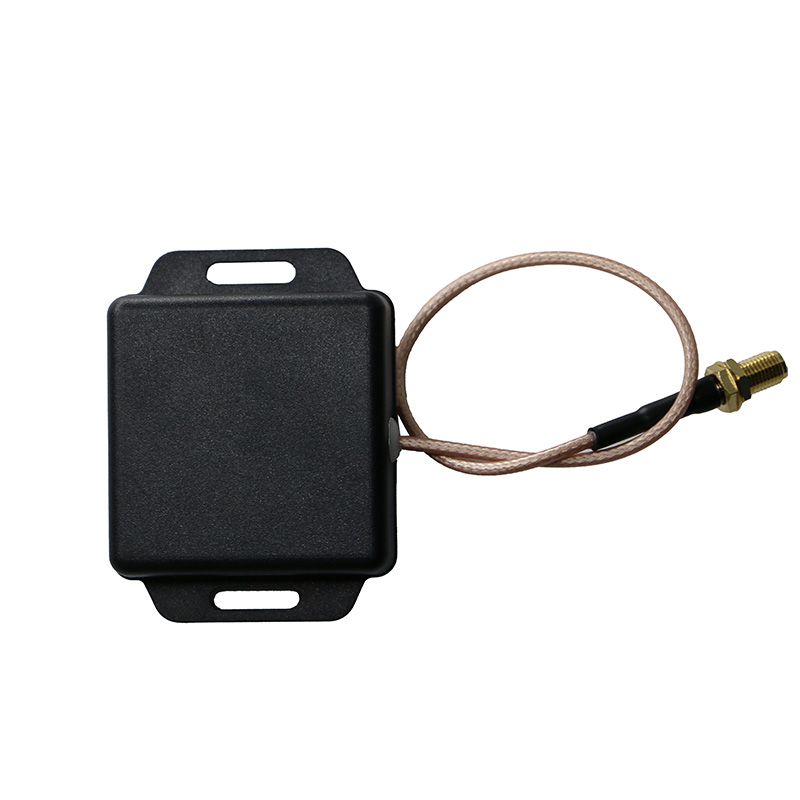

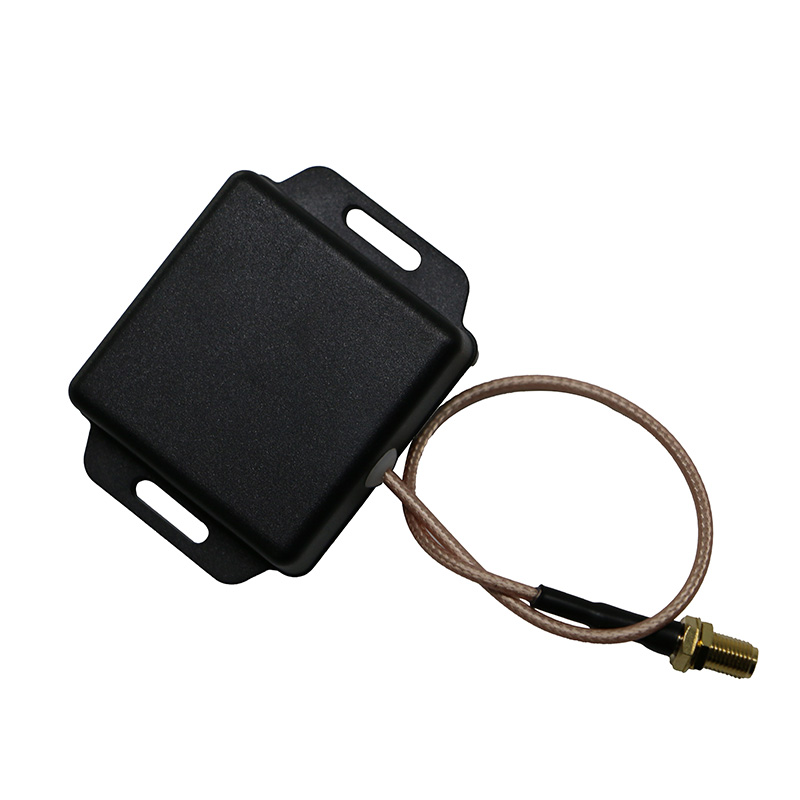

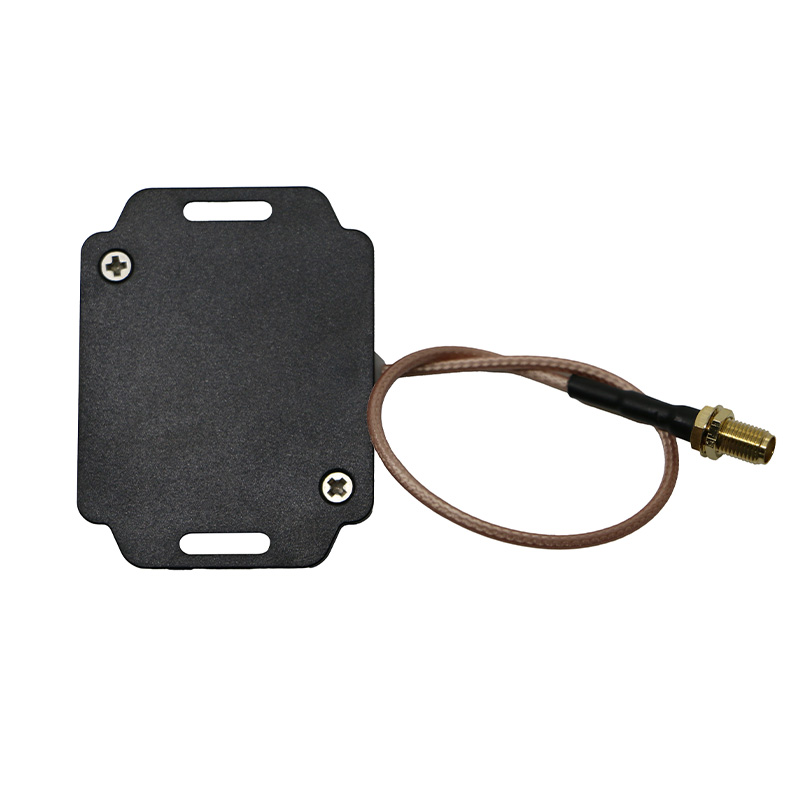

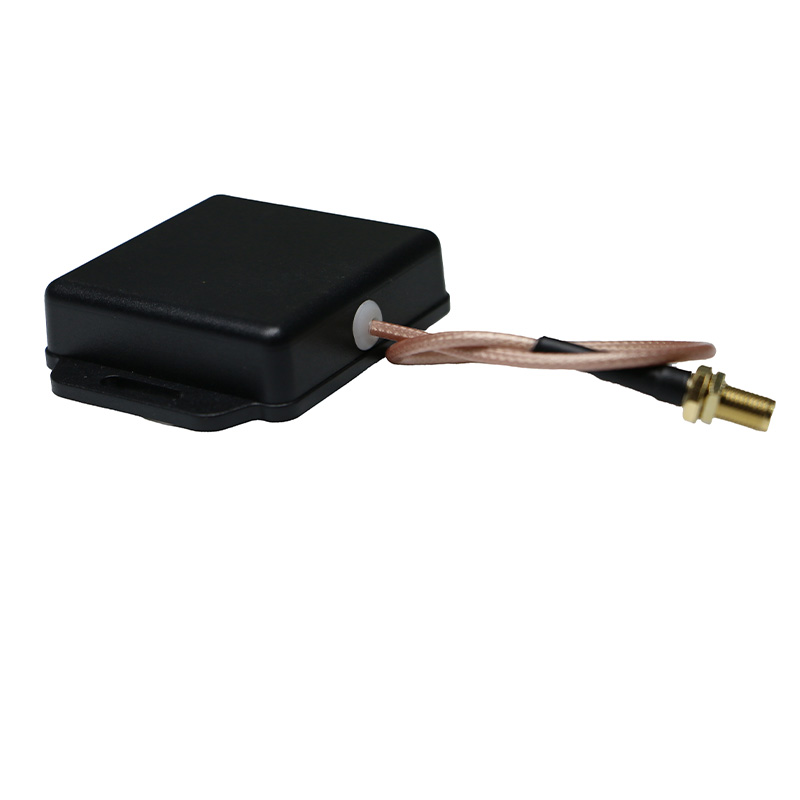

ABS UHF RFID Small Antenna

With a circular polarization design, the gain is 3dBi, and the size is 51×51×15mm. It has excellent multi-angle recognition capability and is suitable for scenarios where the tag orientation is not fixed. The structure is sturdy and has strong weather resistance. It is widely used in indoor and outdoor identification applications such as asset inventory and medical material management.
ABS UHF RFID Small Antenna
Features
  • Industrial-Grade Weather-Resistant
  • Ultra-Compact Size
  • Wide Beam Coverage with Circular Polarization
  • -20℃ to 60℃
  • Multi-Interface Flexible Compatibility
  • Suitable for Harsh Environments
Get Quote
Specifications
  • RFID Performance
    RFID Frequency 865-868Mhz /920-928Mhz(Can be customized)
    Gain 3dBi
    Beam width Hor:70° Ver:70°
    Polarization Circular
    VSWR ≤1.5
    F/B Ratio ≥20
    Impedance 50Ω
    Maximum power 50W
    Lightning protection DC Ground
    Connector N-Female
  • Physical Performance
    Working Temperature -40ºC to +70ºC
    Rated wind velocity 60m/s
    Pole Diameter Φ30-50mm
    Colour White
    Material ABS
    Dimension 51*51*15mm
