GZY-P9525
Long - range RFID PCB tag

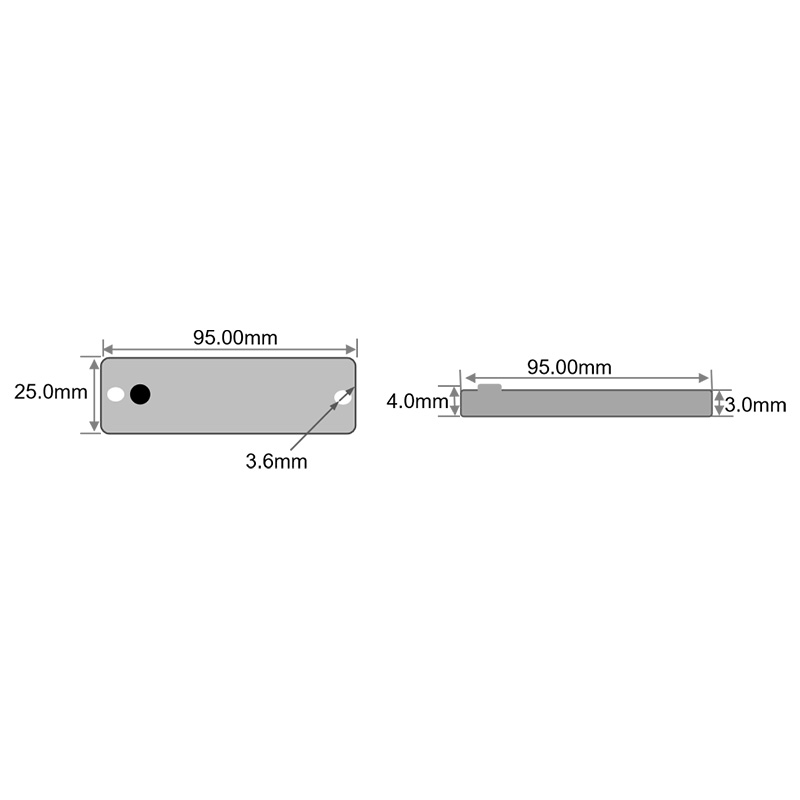

The size is 95×25mm, with a thickness of 3.0mm (including the chip,the thickness is 4.0mm). It supports various mechanical installations. The maximum reading distance can reach up to 10.5 meters, suitable for large metal assets in warehouses, logistics, etc. where there are strict requirements for ultra-long distance recognition.
/
Long - range RFID PCB tag GZY-P9525
Features
-
Large Size 95x25mm -
up to 10.5 Meters -
Surface Custom Printing -
Chip Customizable -
IP68 Protection Rating -
Ideal for Warehousing and Management
Specifications
-
Physical Features
Model GZY-P9522 Size 95mmx25mmxT3mm
Material (FR4) PCB Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods Adhesive or embedded
Package details 500Pcs/bags
Weight 16.3g
Colour Black
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode 9
EPC Memory 96-128bit, TID:64bit
Read distance 0.1-10.5m (depend on environmental conditions)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
IP Rating IP68
