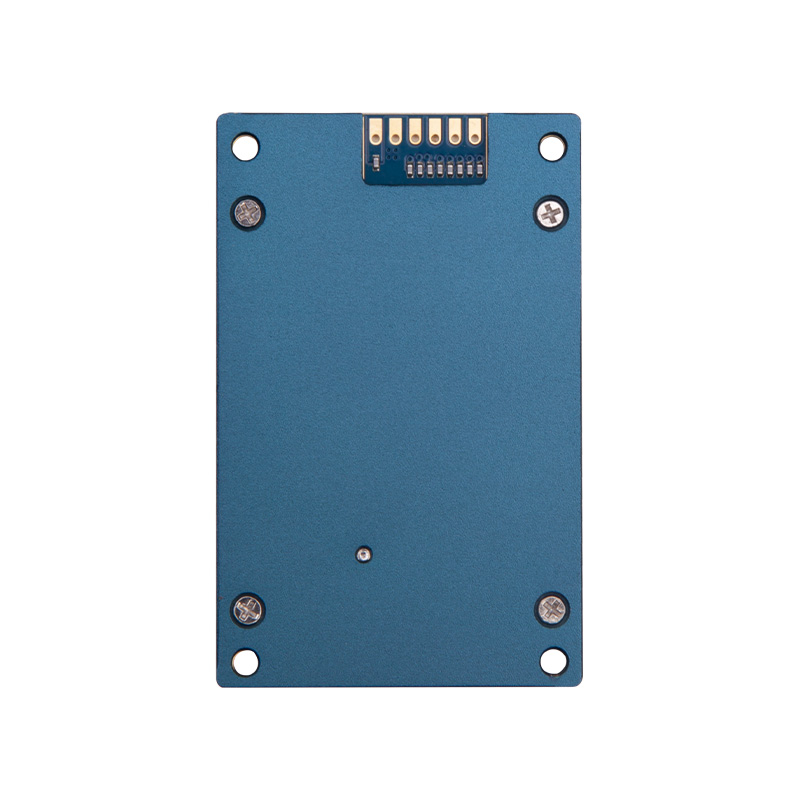

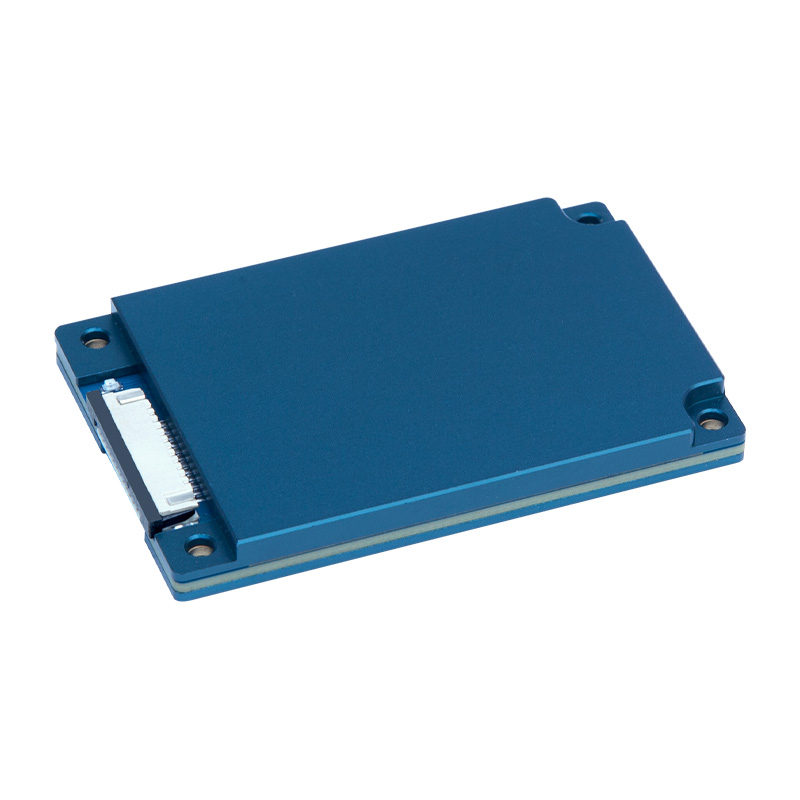

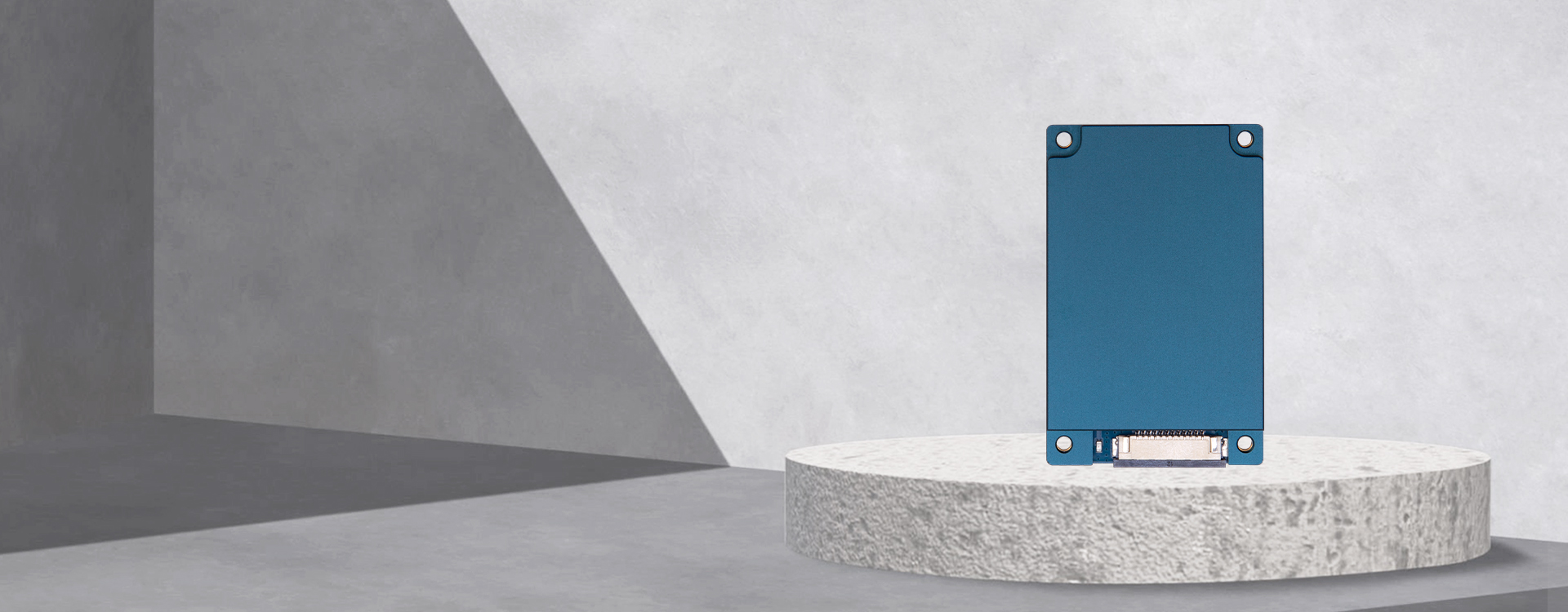

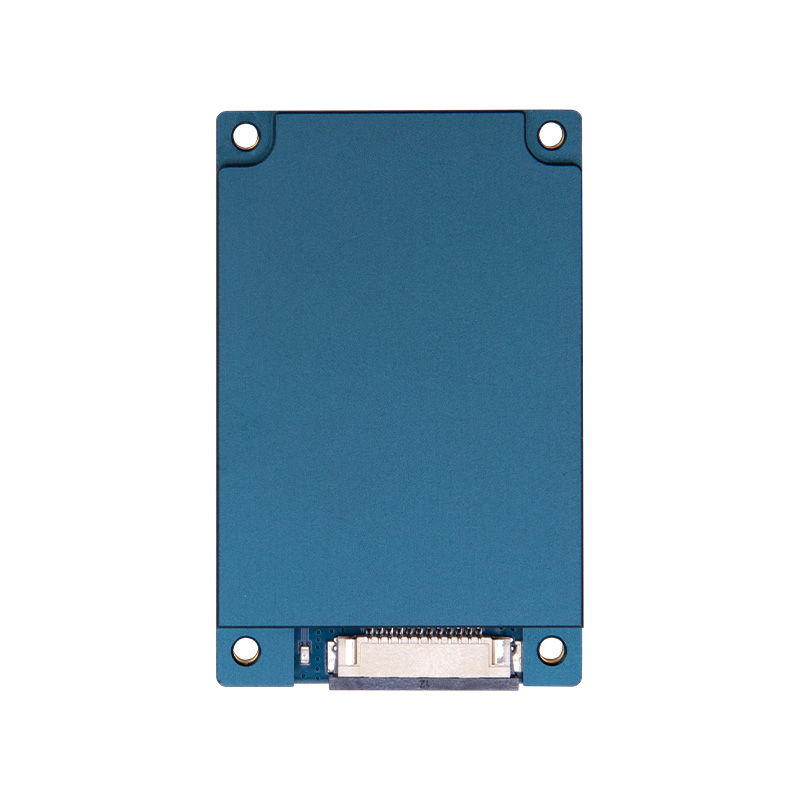

GZY-E91
IMPINJ UHF RFID Module (1-Port)
GZY-E91 is an ultra-high frequency single-channel module based on the Impinj E710 chip. Its size is 57.5 × 36.8 × 6.1 mm and its weight is 23 grams. It supports adjustable power ranging from 5 to 33 dBm and a tag inventory speed of over 1000 tags per second. It is connected to the antenna through the MMCX interface and the reading distance can reach up to 25 meters. Its compact design is suitable for high-performance RFID integration scenarios in space-constrained handheld devices and portable t
/
IMPINJ UHF RFID Module (1-Port)
Features
-
Impinj E710 -
Supports Gen2X Functionality -
Peak Read Rate >1000 Tags/Sec -
Supports Online Firmware Upgrade -
External Heat Sink with Air Cooling -
-20°C to +65°C
Specifications
-
RFID Performance：
RFID Frequency 865-868Mhz /902-928Mhz（Can be customized） Air Interface Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C Reader Chip IMPINJ E710 / R2000 RF Output 0 – 30dBm（adjustable） Reading Distance 0-10m(depens on antenna performance) Support RSSI Support
Inventory Tag Peak Speed > 700 Pcs/Second Label buffer 1000Pcs Tag @ 96 bit EPC Working Mode Standalone / Intensive Communication interface Uart 3.3V Application Software interface(SDK) Supply API SDK and VC and VB, Java application routines Output Power Accuracy +/- 1dB Input Power Accuracy +/- 0.2dB Receiving Sensitivity < -85 dBm -
Physical Performance：
Dimensions 55.5mm(L) x39.5mm(W) x 4.8mm(H)

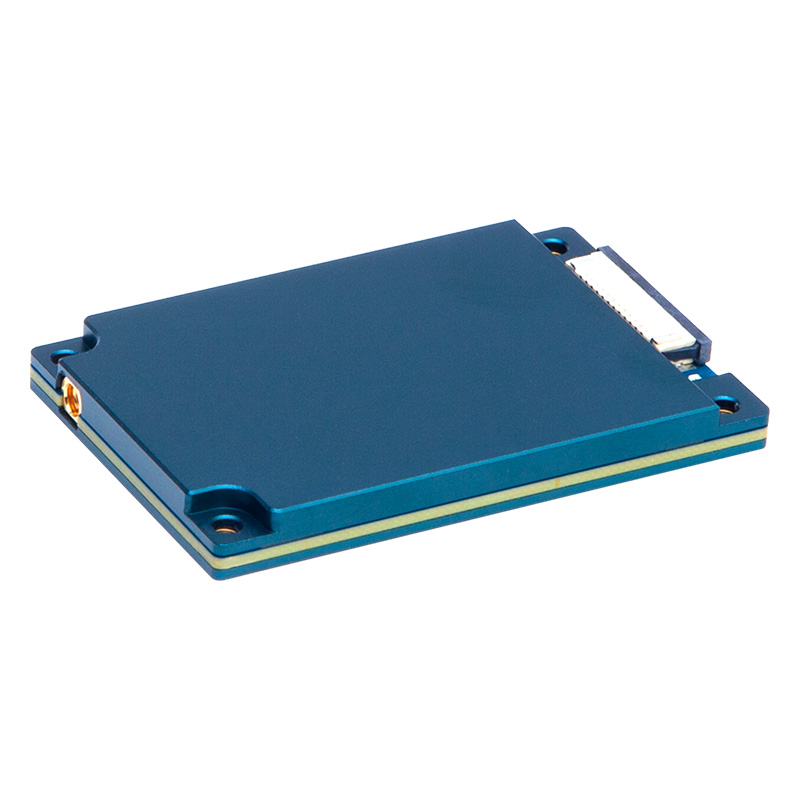

RF output interface MMCX type connector
Input Voltage DC 4.6V~5.5V
Working current 1.2A+/-10%@5V (33dBm Output, 25°C)
Interface Connector Molex 53261-1571
RF Connector Material Brass Gold Plated
Shield material Gold cast aluminum
PCB Material Rogers FR4 plated
Wight 50g
