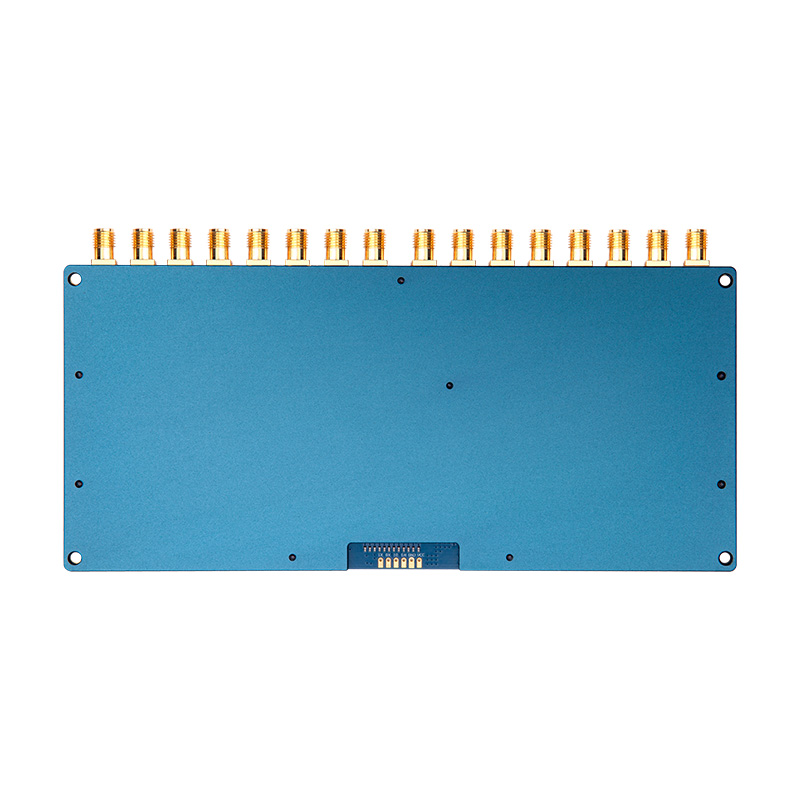

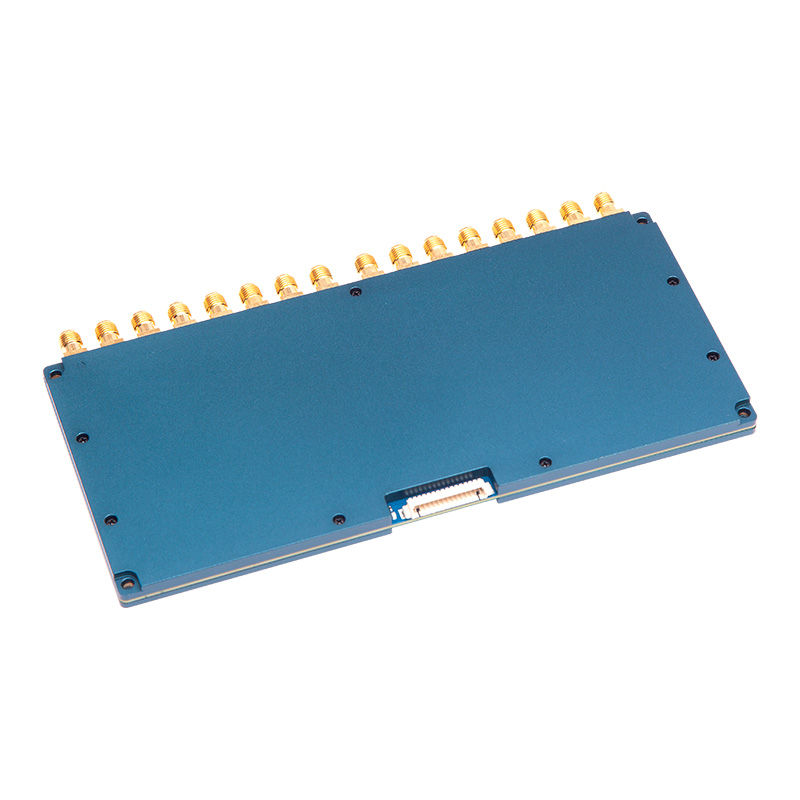

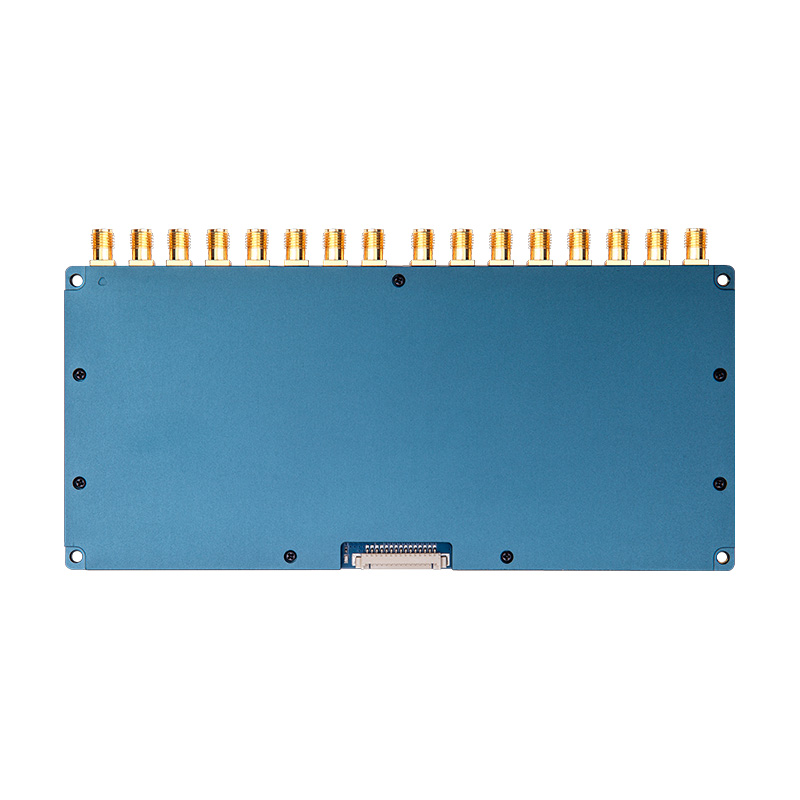

GZY-E916
16-channel RFID reader module
GZY-E916 is a flagship 16-channel reading and writing module, with dimensions of 173 × 88.3 × 7.8mm. It supports simultaneous connection of 16 antennas. Based on the Impinj E710 chip, it features unparalleled multi-tag processing capability (over 1000 tags per second) and stable thermal management. It is specifically designed for large-scale RFID system integration in logistics hubs, high-speed sorting centers, retail warehouse inventory checks, and other ultra-large-scale applications.
/
16 Port RFID Reader Module
Features
-
16-Port---SMA Antenna -
Highly Integrated Compact Design -
Ambient Temperature Monitoring -
Advanced Multi-Tag Anti-Collision -
Operating Humidity: 5-95% RH -
Gold-Plated Aluminum Shielding
Specifications
-
RFID Performance：
RFID Frequency 865-868Mhz /902-928Mhz（Can be customized） Air Interface Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C Reader Chip IMPINJ E710 / R2000 RF Output 0 – 30dBm（adjustable） Reading Distance 0-10m(depens on antenna performance) Support RSSI Support
Inventory Tag Peak Speed > 700 Pcs/Second Label buffer 1000Pcs Tag @ 96 bit EPC Working Mode Standalone / Intensive Communication interface Uart 3.3V Antenna QTY 1,2,4,8,16 Optional SMA Antenna Interface Input/Output (GPIO) 2-way input, 2-way output (optional)
Application Software interface(SDK) Supply API SDK and VC and VB, Java application routines Output Power Accuracy +/- 1dB Input Power Accuracy +/- 0.2dB Receiving Sensitivity < -85 dBm -
Physical Performance：
Dimensions 167mm(L) x86mm(W) x 6.3mm(H) RF output interface SMA type connector
Input Voltage DC 4.6V~5.5V
Working current 1.2A+/-10%@5V (33dBm Output, 25°C)
Interface Connector Molex 53261-1571
RF Connector Material Brass Gold Plated
Shield material Gold cast aluminum
PCB Material Rogers FR4 plated
Wight 150g
