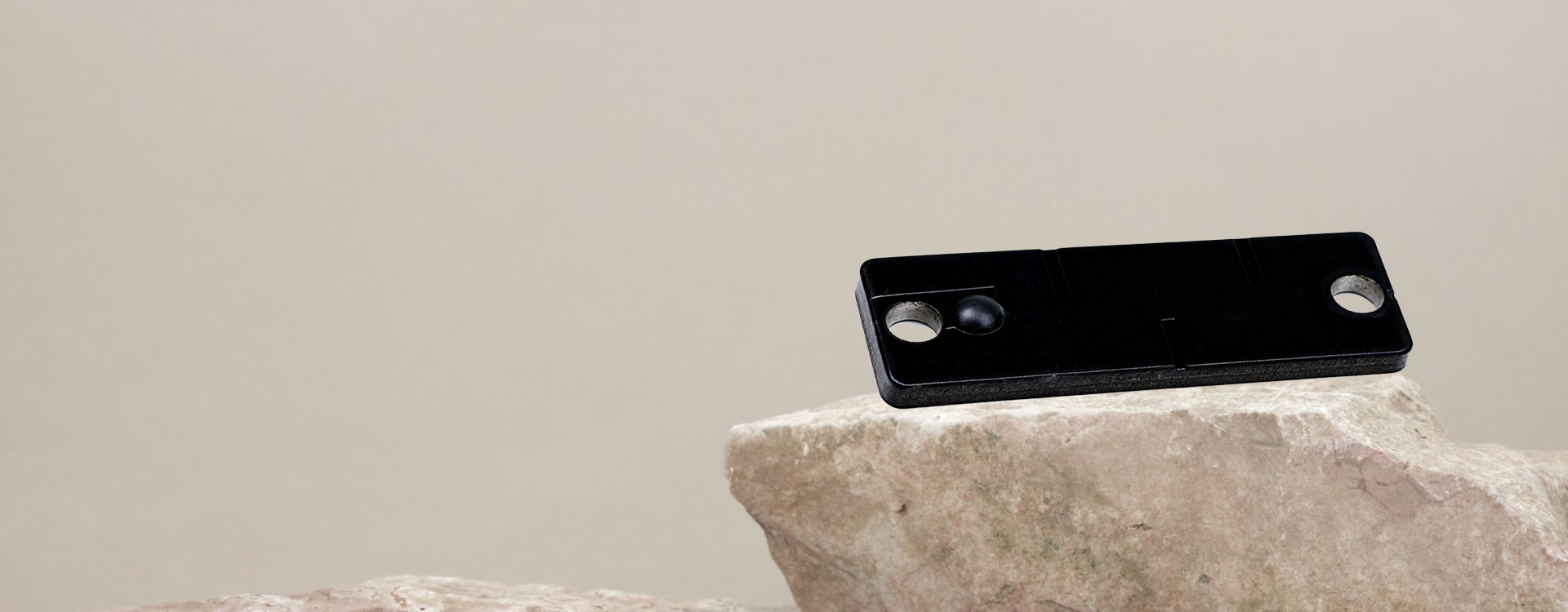

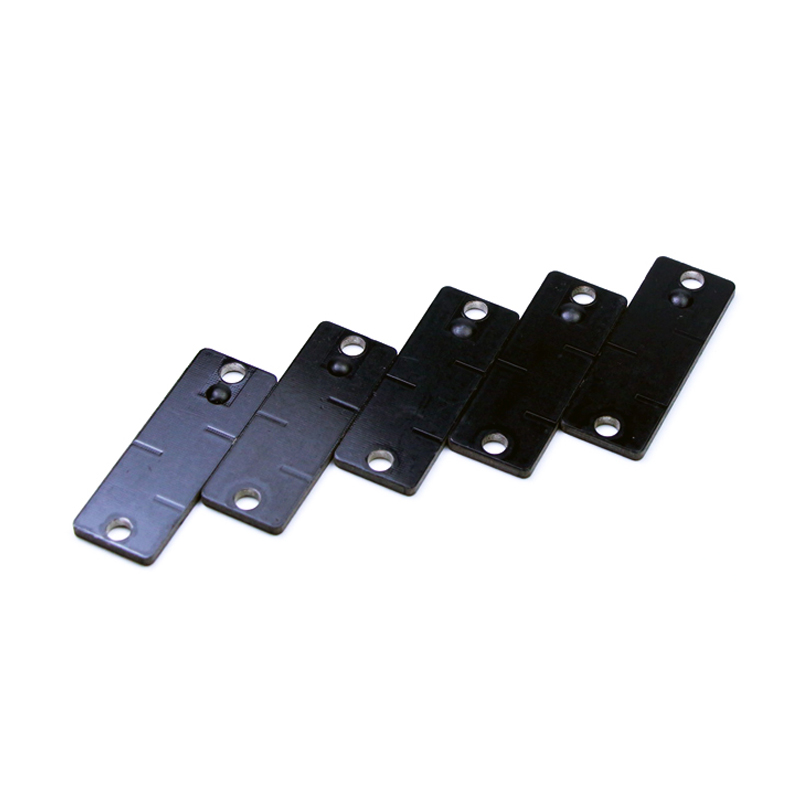

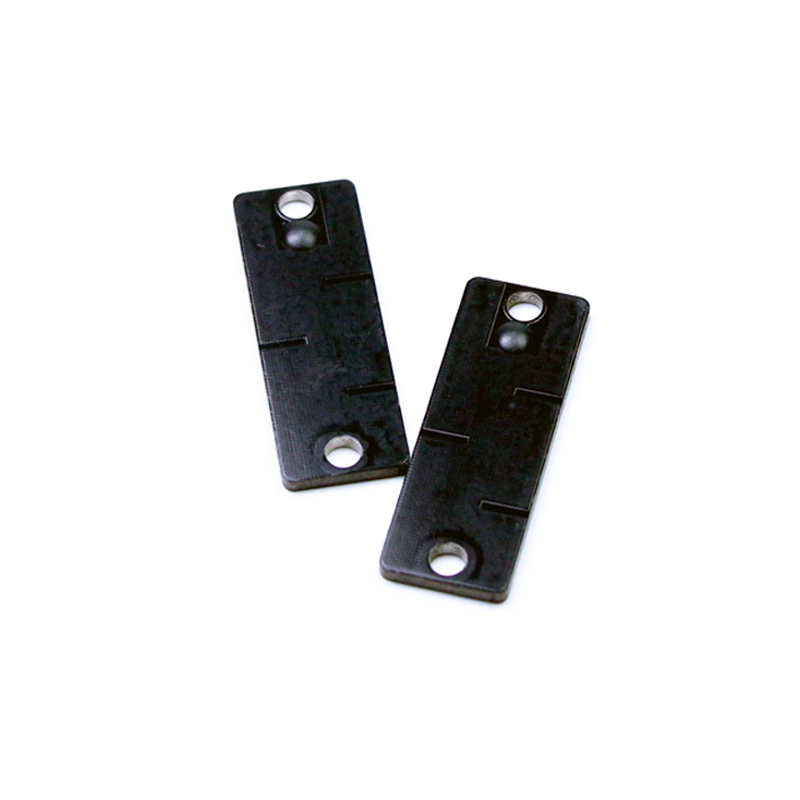

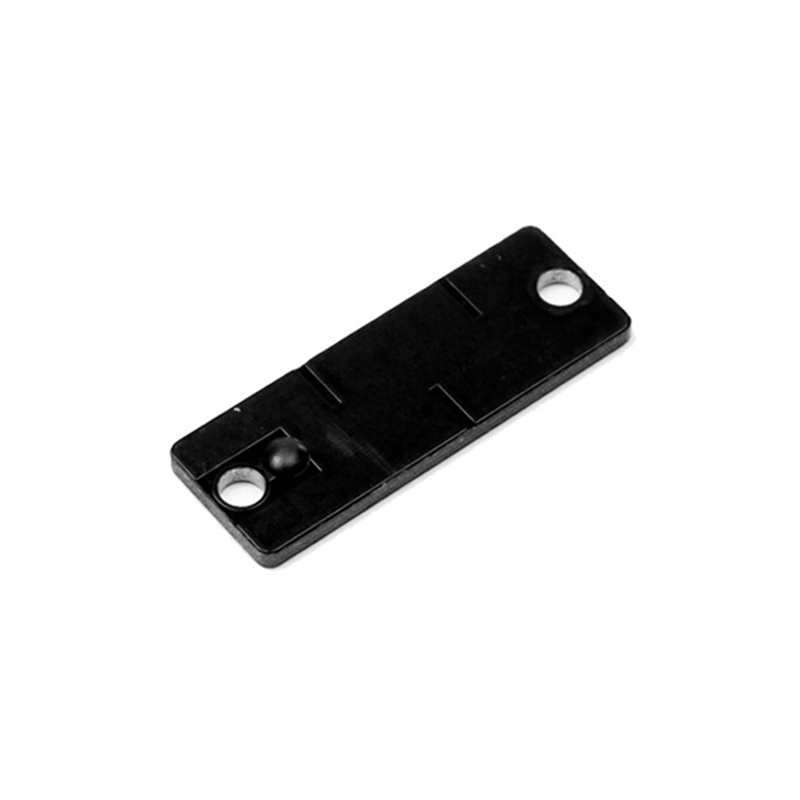

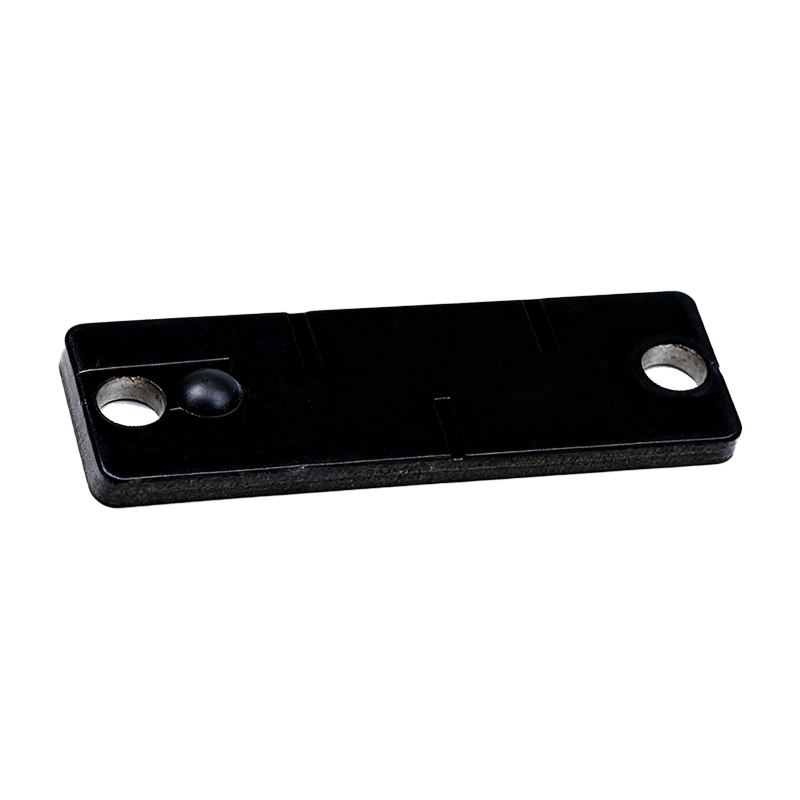

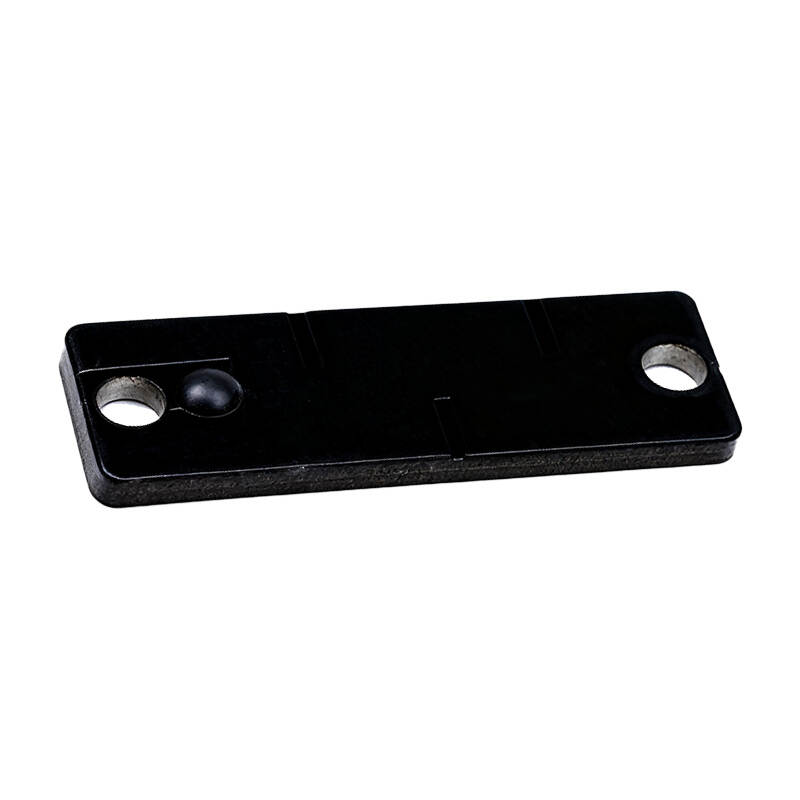

GZY-N4215
High-Temperature RFID Tags
The GZY-N4215 is a heavy-duty RFID tag specifically engineered for the most hostile industrial environments. Encapsulated in high-grade PTFE (Teflon), this tag provides an impenetrable barrier against aggressive chemicals, including strong acids and alkalis, ensuring data integrity where standard tags would dissolve or fail.
/
Micro anti - metal RFID tag
Features
-
Slim 2.1mm Thickness -
Maximum 7.0 Meters -
IP68 Protection Rating -
Corrosion-Resistant Teflon Material -
150℃ High Temperature Resistance -
Screw and Adhesive
Specifications
-
RFID Features:
RFID Protocol: EPC Class1 Gen2, ISO18000-6C
Frequency: (US) 902-928MHz, (EU) 865-868MHz
Chip Type: NXP Ucode 8, 9
Memory : EPC 96bits-128bits , USER 0bits, TID64bits
TID Memory: 64bit
Date Storage: >10years
Re-Write: 100,0000 times Read Range : (Fix Reader) 1-7.0m, On metal
Read Range : (Handheld Reader) 1-5.5m, On metal
-
Physical Features:
Size 42x15mm, (Hole: D4mmx2)
Material: PTFE Chip Type NXP Ucode 8, 9
Colour: Black
Mounting Methods: Adhesive, Screw
Weight: 2.2g
-
Environmental Features:
IP Rating IP68
Storage Temperature: -55°C to +200°C (280°С for 50 minutes, 250°С for 150minutes)
Withstand PH:
Operation Temperature: -40°C to +150°C (working 10hours in 180°С)
Applications
