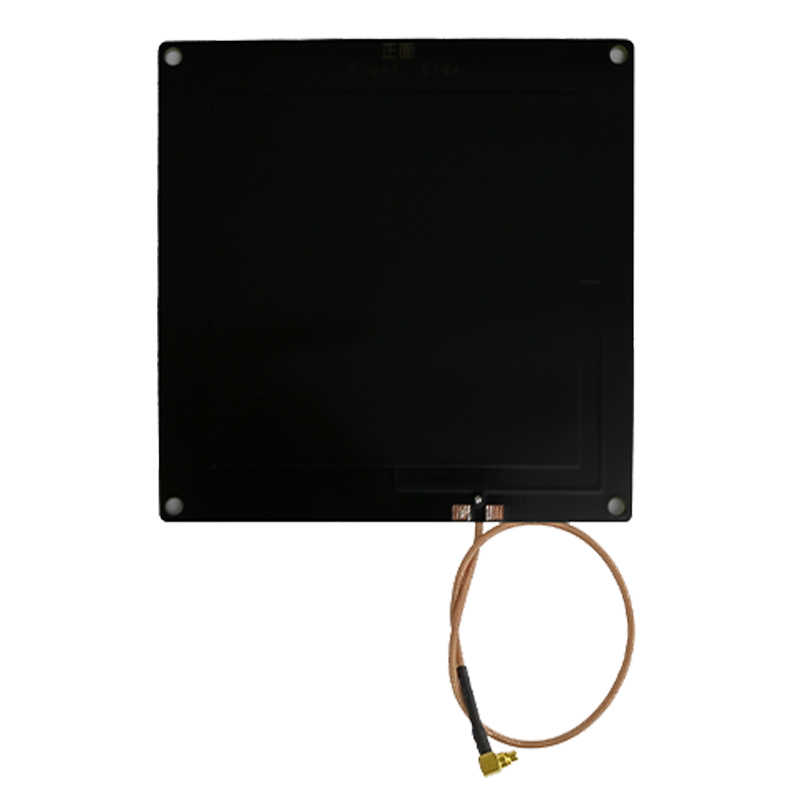

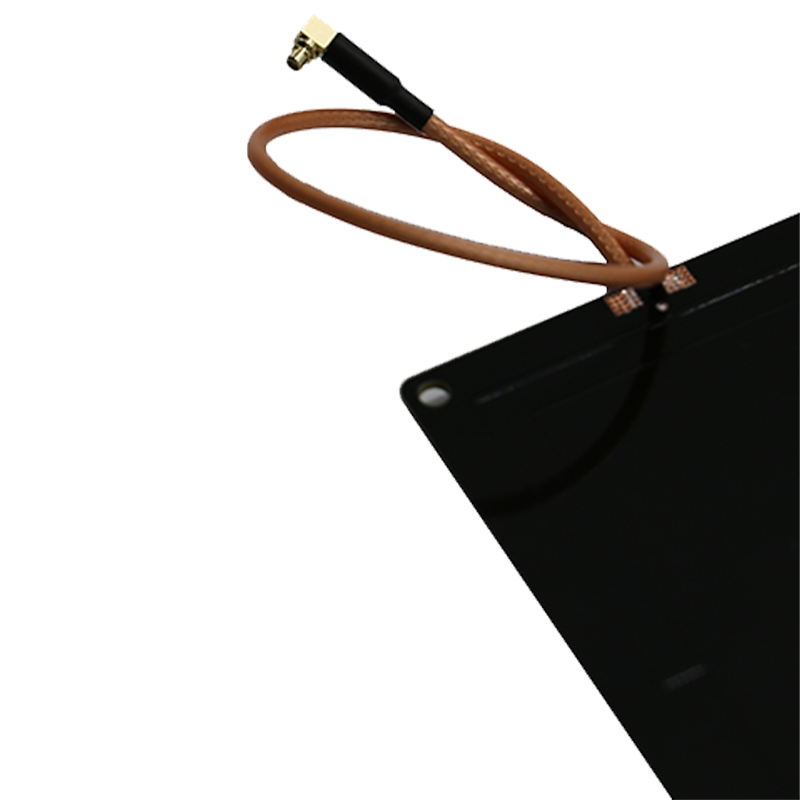

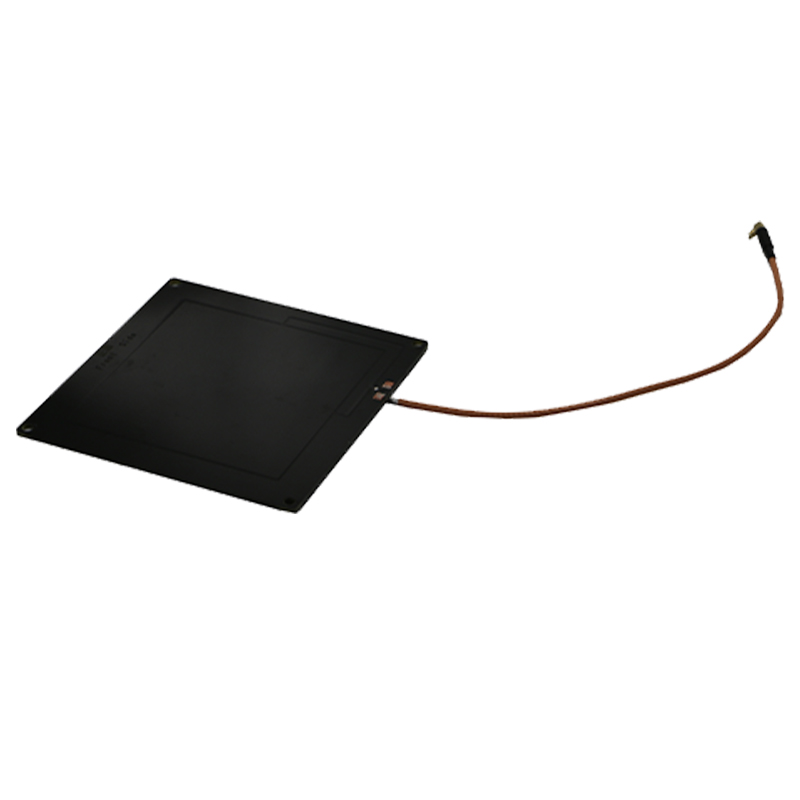

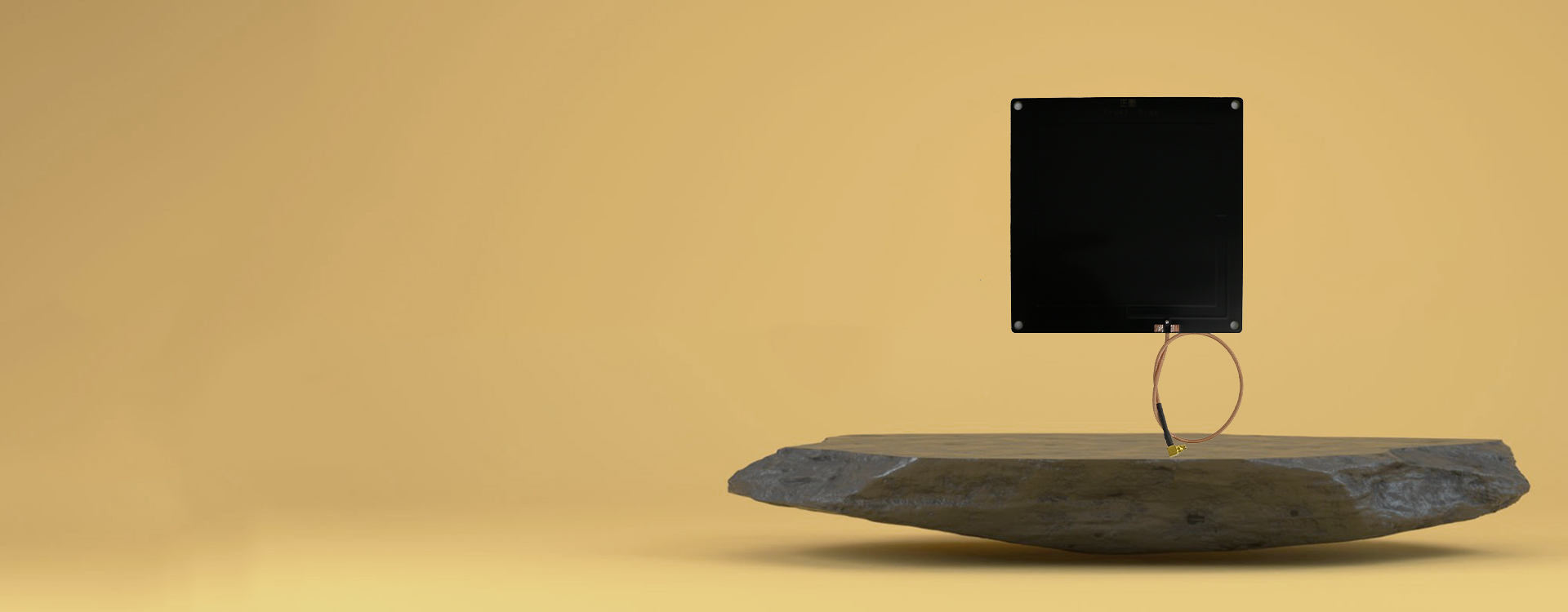

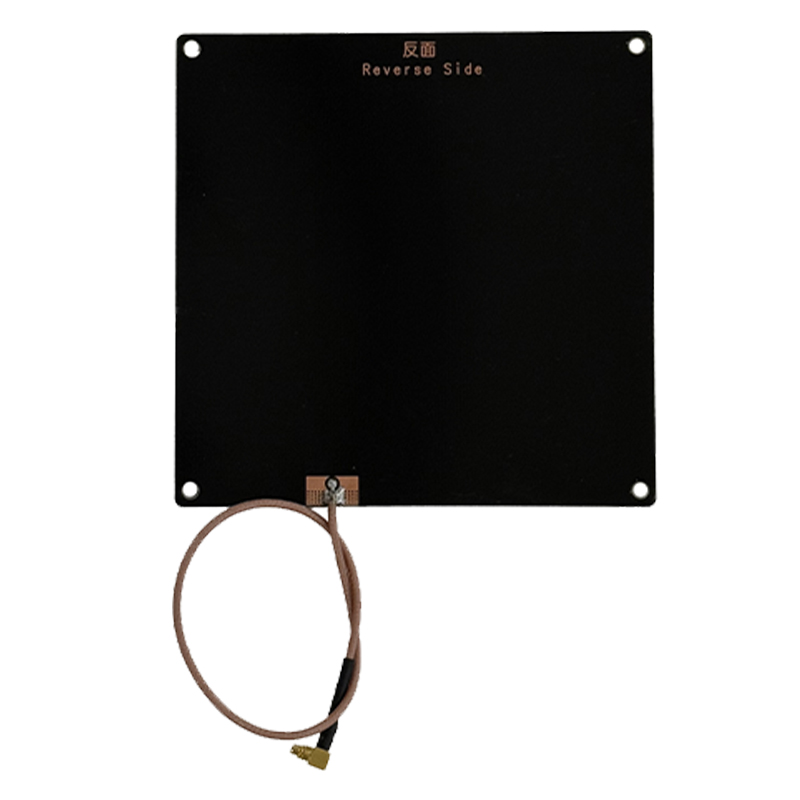

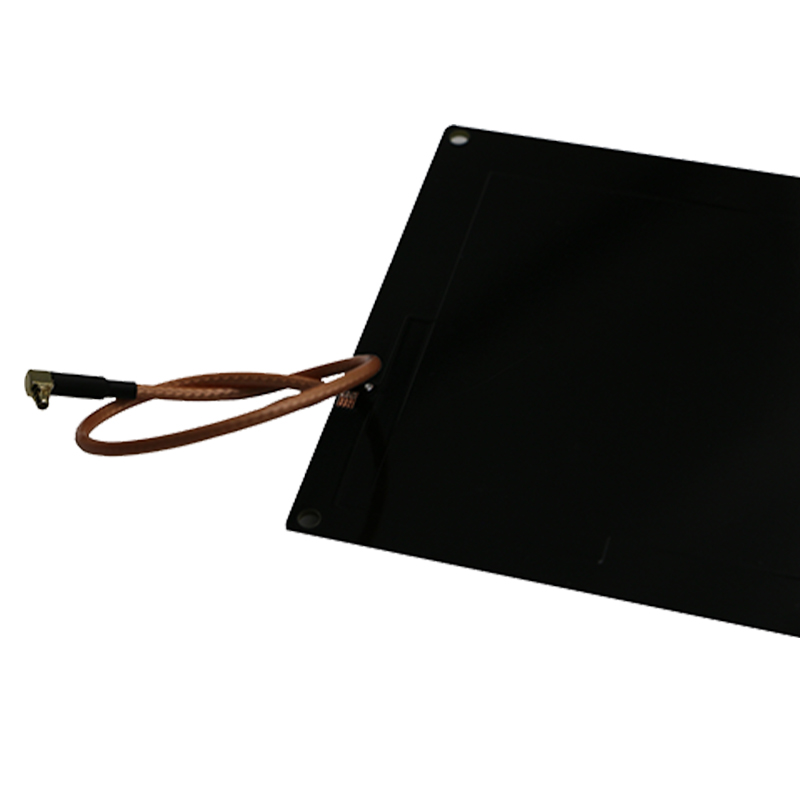

GZY-T1010
5dbi RFID Smart cabinet Antenna
Made of PCB material, it is specially designed for metal cabinet environments. With a compact size of 101×101mm, it supports the 865-928MHz frequency band, has a 4dBi gain and circular polarization for anti-interference, and is IP65 protected to adapt to harsh environments ranging from -40℃ to 60℃. The ear-hanging installation is convenient, and the VSWR ≤ 1.3 ensures stable signals.It is suitable for intelligent material management scenarios such as archive cabinets, medical reagent cabinets, a
/
5dbi RFID Smart cabinet Antenna
Features
-
Metal-Interference Protection -
Lightweight PCB Design -
Anti-Interference Circular Polarization -
-40°C Cold Resistance -
IP65 -
Ultra-Low VSWR
Specifications
-
RFID Performance
RFID Frequency 865-868Mhz /920-928Mhz（Can be customized） Gain 4dBi Beam width Hor：65° Ver：65°
Polarization Circular VSWR ≤1.3
F/B Ratio ≥20 Impedance 50Ω Maximum power 50W Lightning protection DC Ground Connector N-Female -
Physical Performance
Working Temperature -40ºC to +70ºC
Rated wind velocity 60m/s
Pole Diameter Φ30-50mm
Colour White Material PCB Dimension 101*101*10 mm
Applications
