GZY-T2020

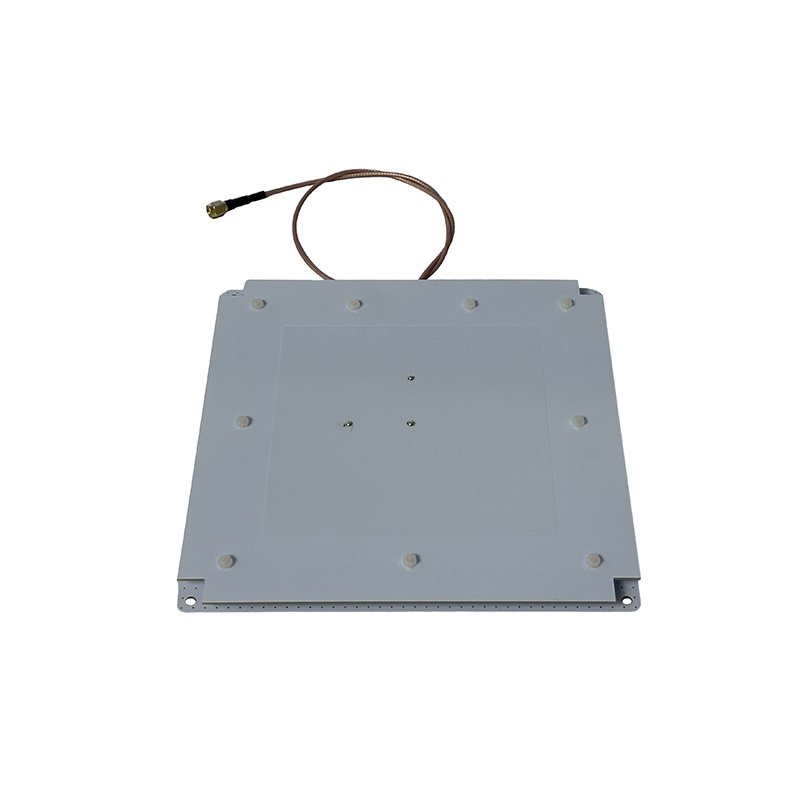

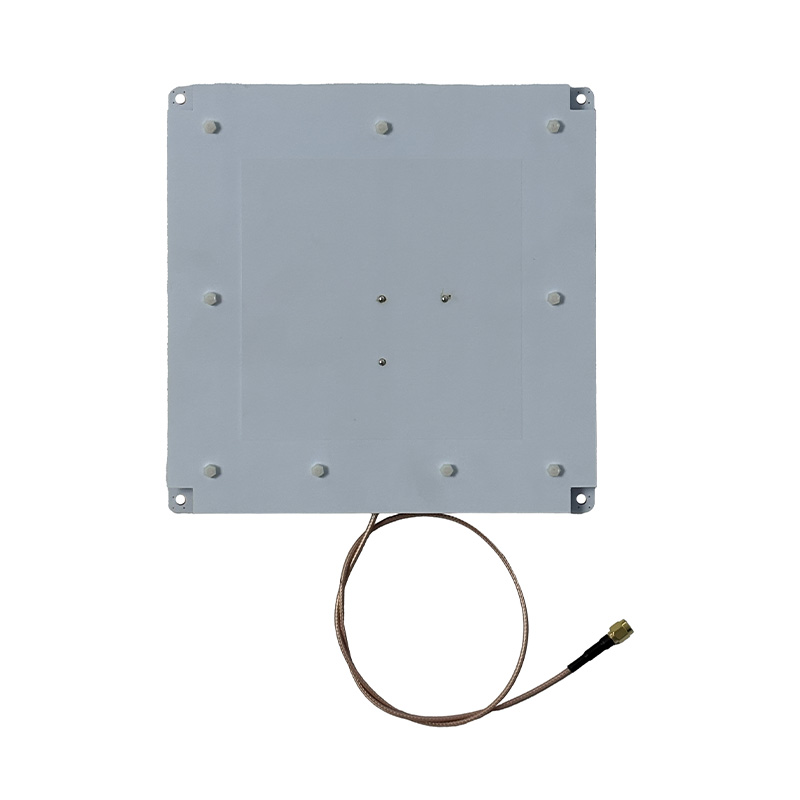

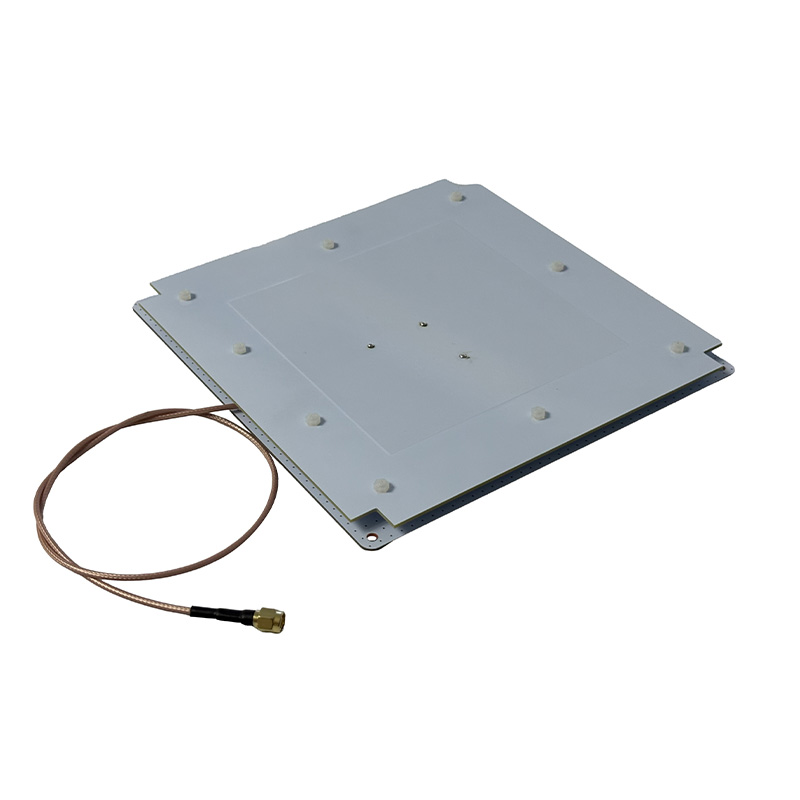

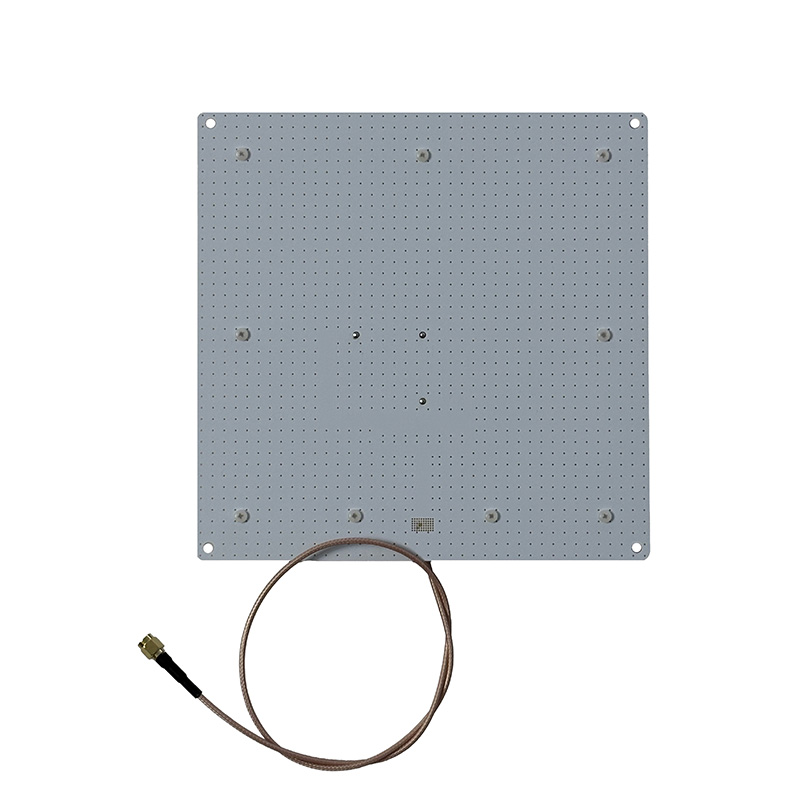

8dbi Cabinet-Mounted RFID Antenna

Made of PCB material, it is compact in size, superior in performance and cost-effective. Optimized for smart cabinets, file cabinets and metal cabinet environments, it can be widely applied in RFID application fields such as archive management, evidence cabinets, medical medicine cabinets and new retail cabinets,providing efficient and stable radio frequency identification solutions.
8dbi Cabinet-Mounted RFID Antenna
Features
  • High-Gain Design for Smart Cabinets
  • Thin, Light & Compact
  • Wide-Angle Coverage with Circular Polarization
  • -20℃~60℃
  • IP65
  • Easy Installation with Mounting Ears
Get Quote
Specifications
  • RFID Performance
    RFID Frequency 865-868Mhz /920-928Mhz(Can be customized)
    Gain 9dBi
    Beam width Hor:65° Ver:65°
    Polarization Circular
    VSWR ≤1.3
    F/B Ratio ≥20
    Impedance 50Ω
    Maximum power 50W
    Lightning protection DC Ground
    Connector N-Female
  • Physical Performance
    Working Temperature -40ºC to +60ºC
    Rated wind velocity 60m/s
    Pole Diameter Φ30-50mm
    Colour White
    Material PCB
    Dimension 200*200*14 mm
Applications
