GZY-CT1
Ceiling-mounted RFID Access Control Reader-Writer

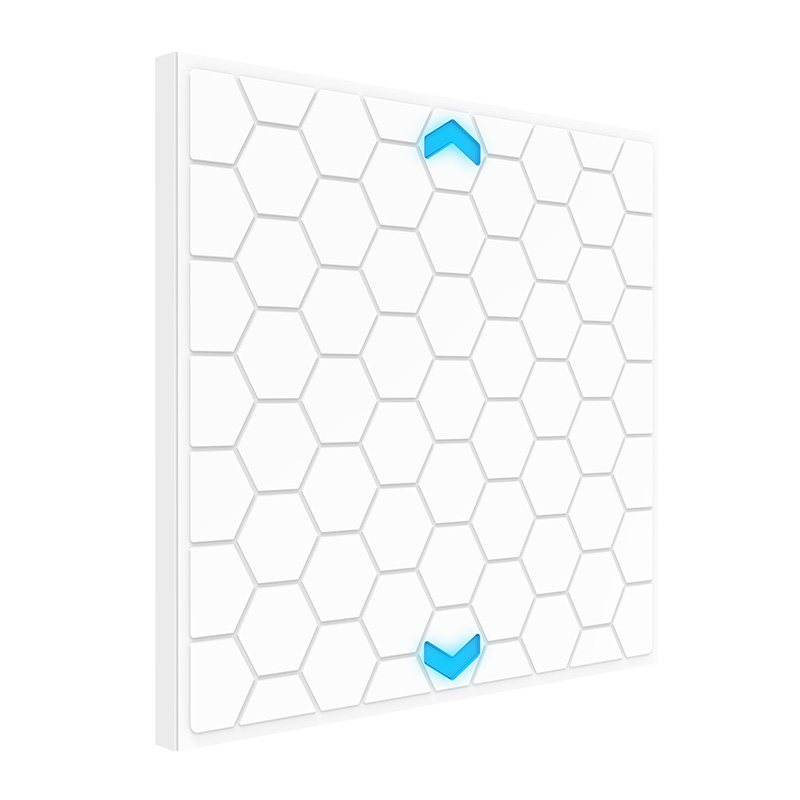

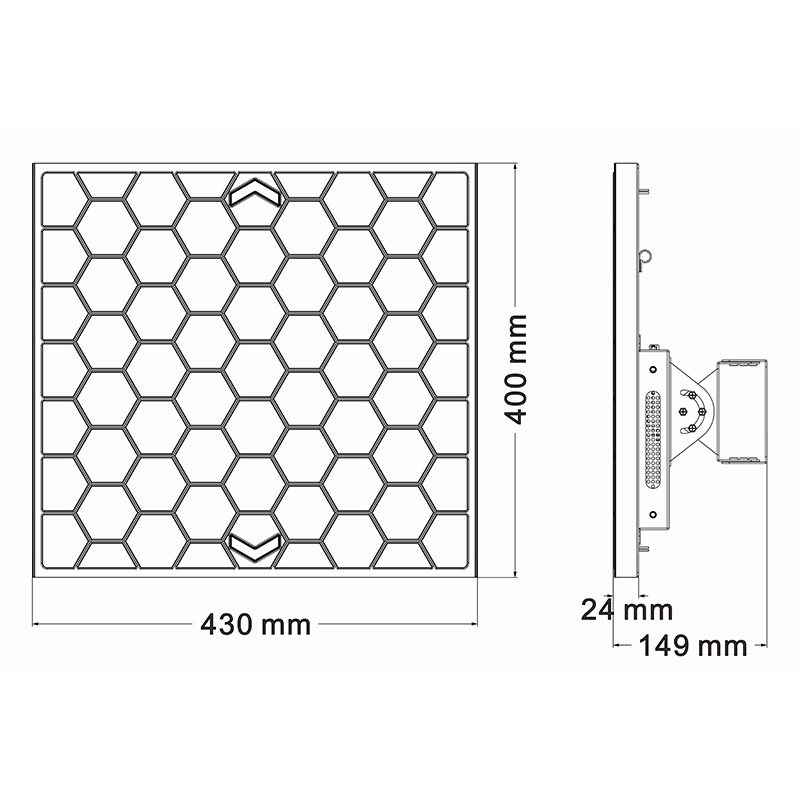

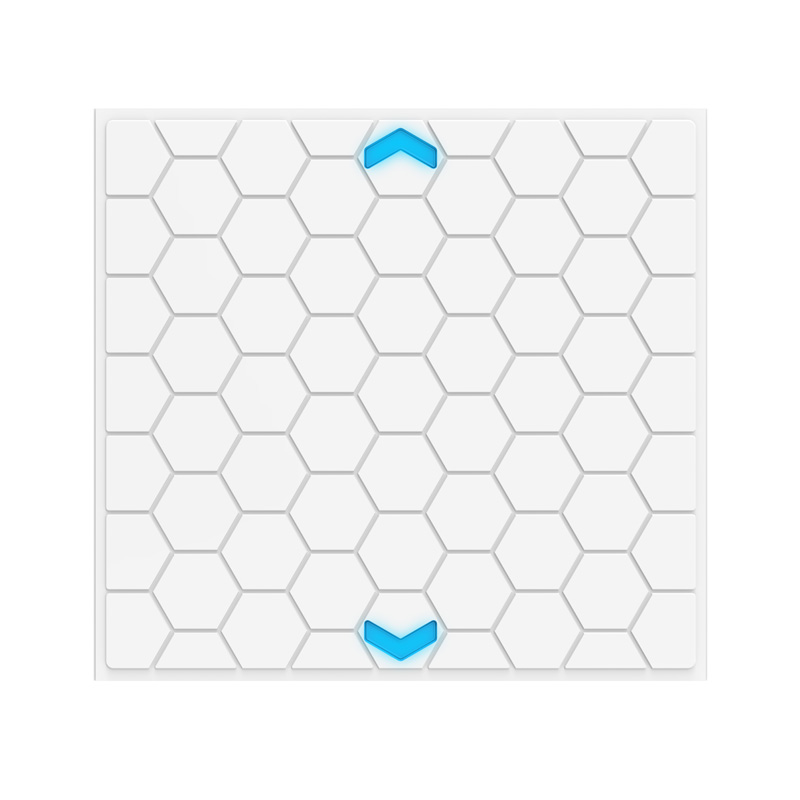

An integrated ceiling-mounted device combining the reader and antenna, with dimensions of 400×430×108mm. The reading range can be adjusted from 0 to 10 meters. It supports audible and visual alarms as well as the reading of dense label groups. It is suitable for long-distance item identification and control in spaces such as warehouse entrances and exits, and intelligent shelves.
/
RFID wall-mounted access control reader
Features
-
Up to 10m Long Reading Range -
Efficient Batch Identification Capability -
Integrated Built-in Antenna Design -
Smart In/Out Identification -

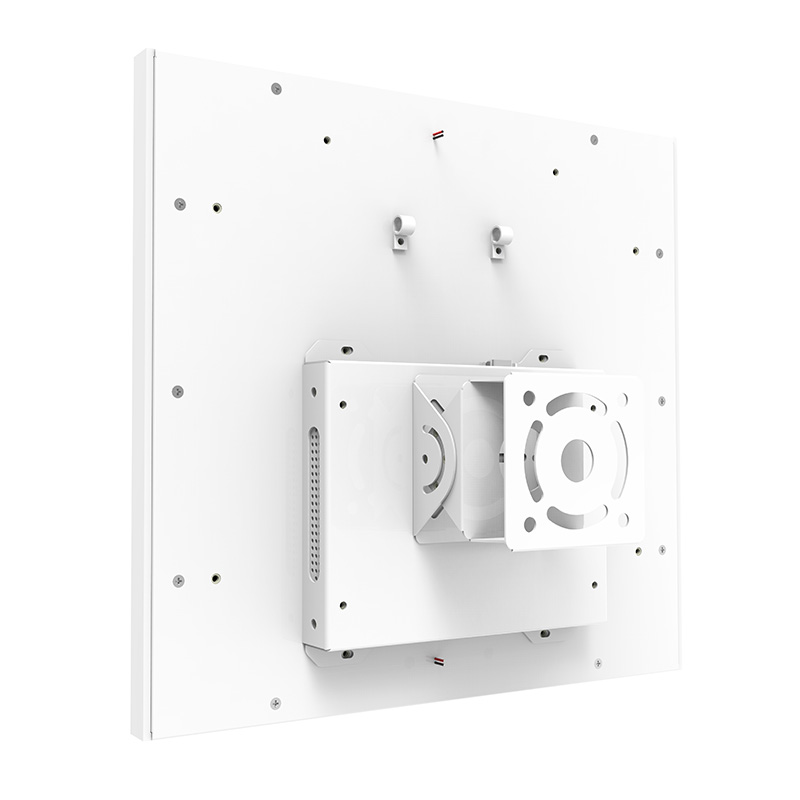

Ceiling Mounting for Space Saving -
Audible & Visual Anti-Theft Alarm
Specifications
-
RFID Performance
RFID Frequency 865-868Mhz /902-928Mhz(customized) Air Interface Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C Reader Chip IMPINJ E710 RF Output 0-30dBm(adjustable) Reading Distance 0-2m(adjustable) Inventory Tag Peak Speed > 700 Pcs/Second
Alarm LED Indicator Way of Working Automatic mode, trigger mode, interactive mode, etc. Antennas 4 SMA antenna ports, 7dbi circular polarization antenna System Support Windows / Android (optional)
Communication Interface TCP/IP、RS232、optional 4G/WiFi Hardware N29 CPU, 2G RAM, 32G ROM,RK3288 CPU, 2G RAM, 8G ROM (optional)
Application Software interface(SDK) Provide with API SDK and C#, Java application routines Output Power Accuracy +/- 1dB
Input Power Accuracy +/- 0.2dB -
Physical Performance
Dimensions 1770mm*45mm*180mm
Power Supply AC110-220V 50Hz 150W Metrial Carbon steel plate Humidity 5% to 95%, non-condensing
Operating Temp. -10℃ to +60℃ Storage Temp. -20℃ to +70℃ Weight 25KG
Applications
