GZY-N4631
RFID Tags for steel Industry

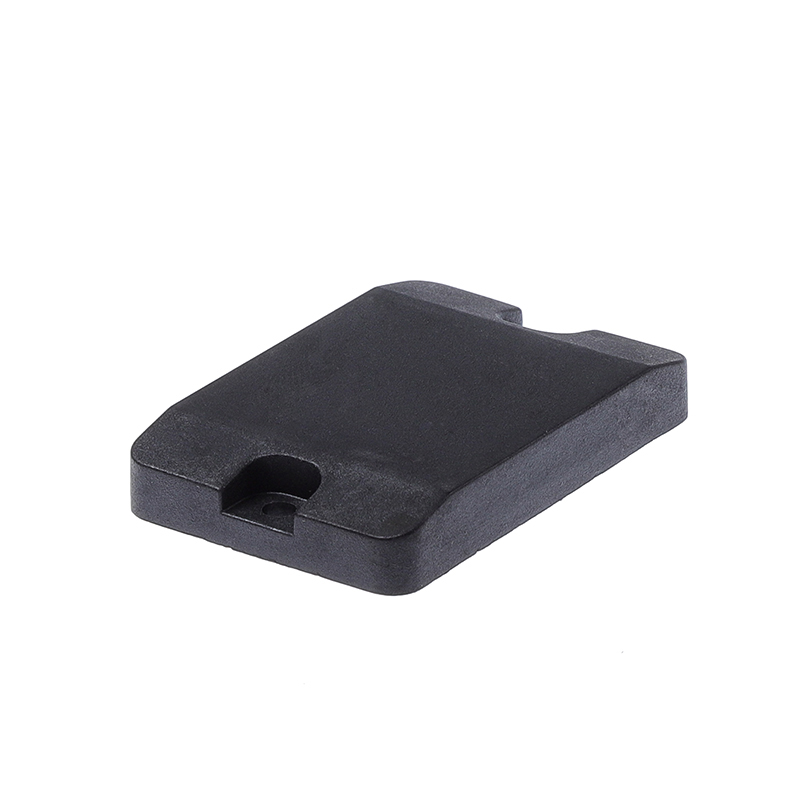

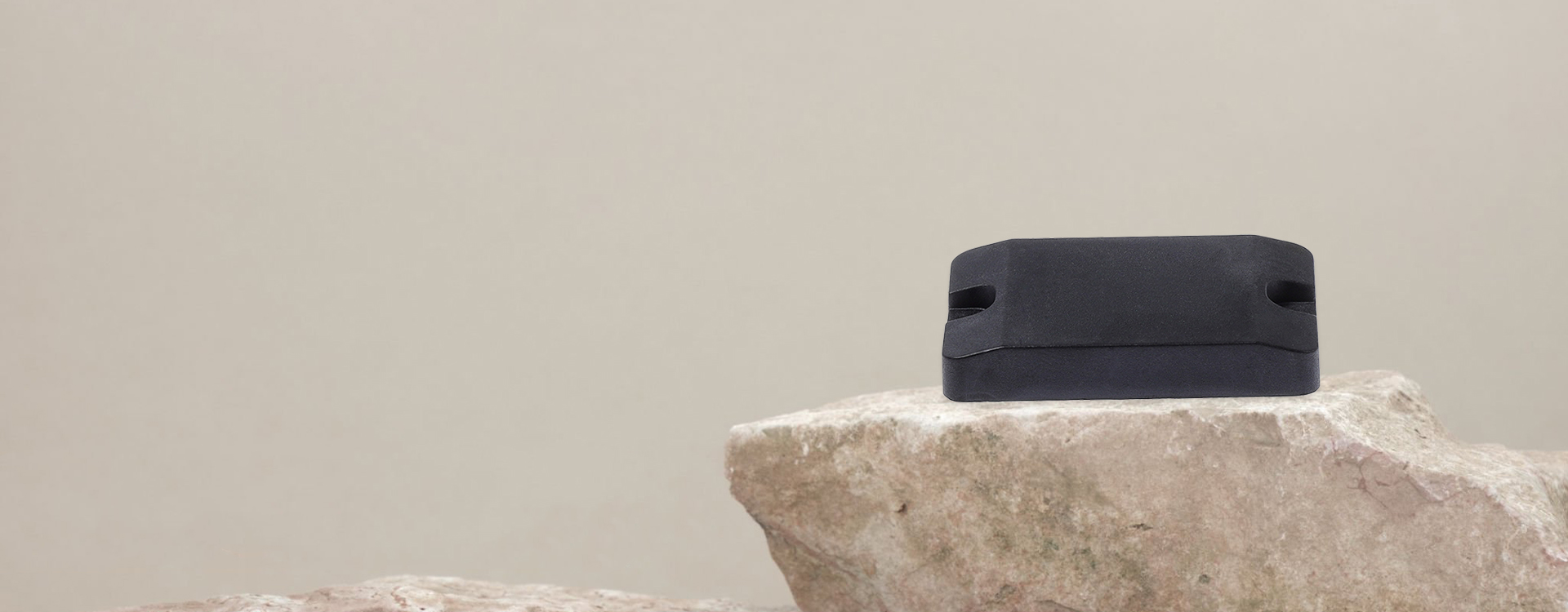

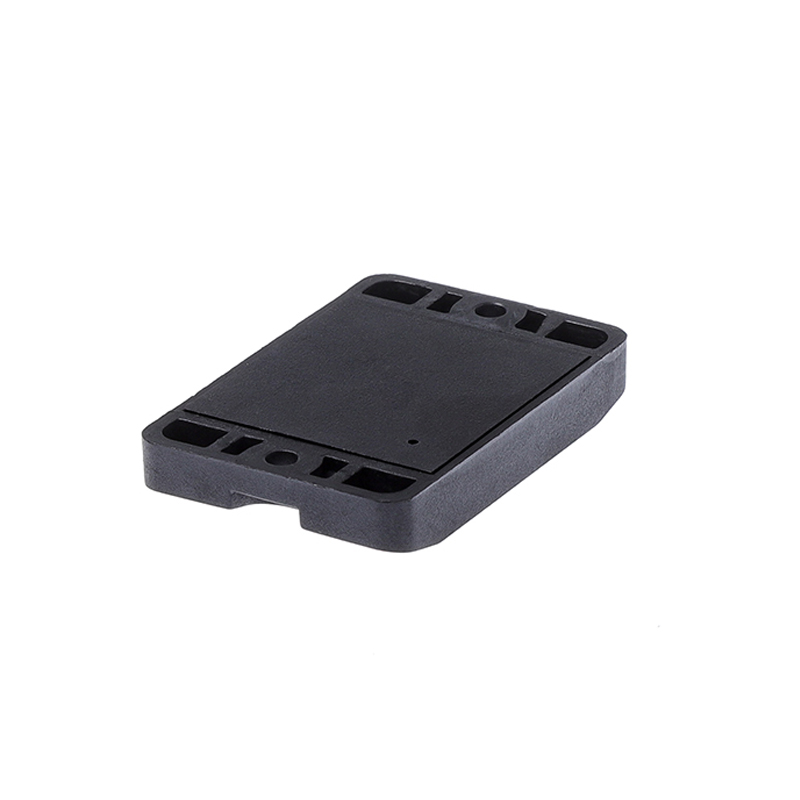

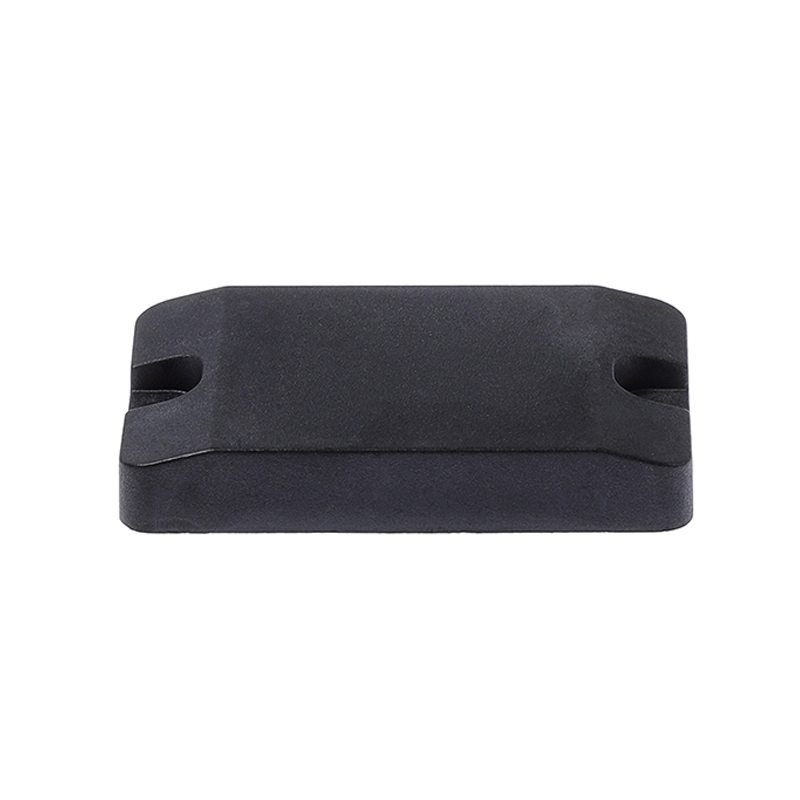

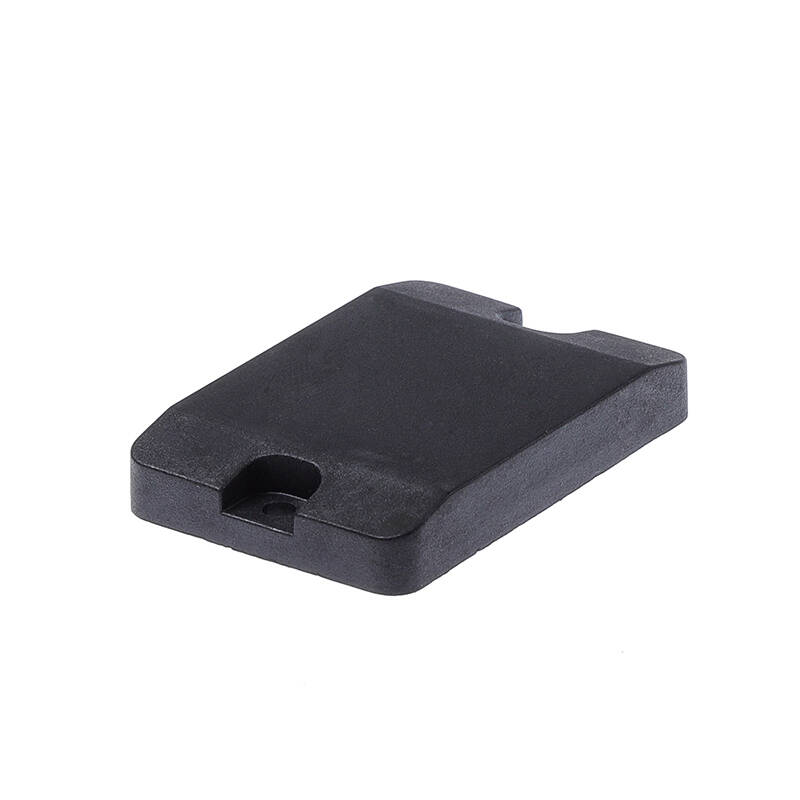

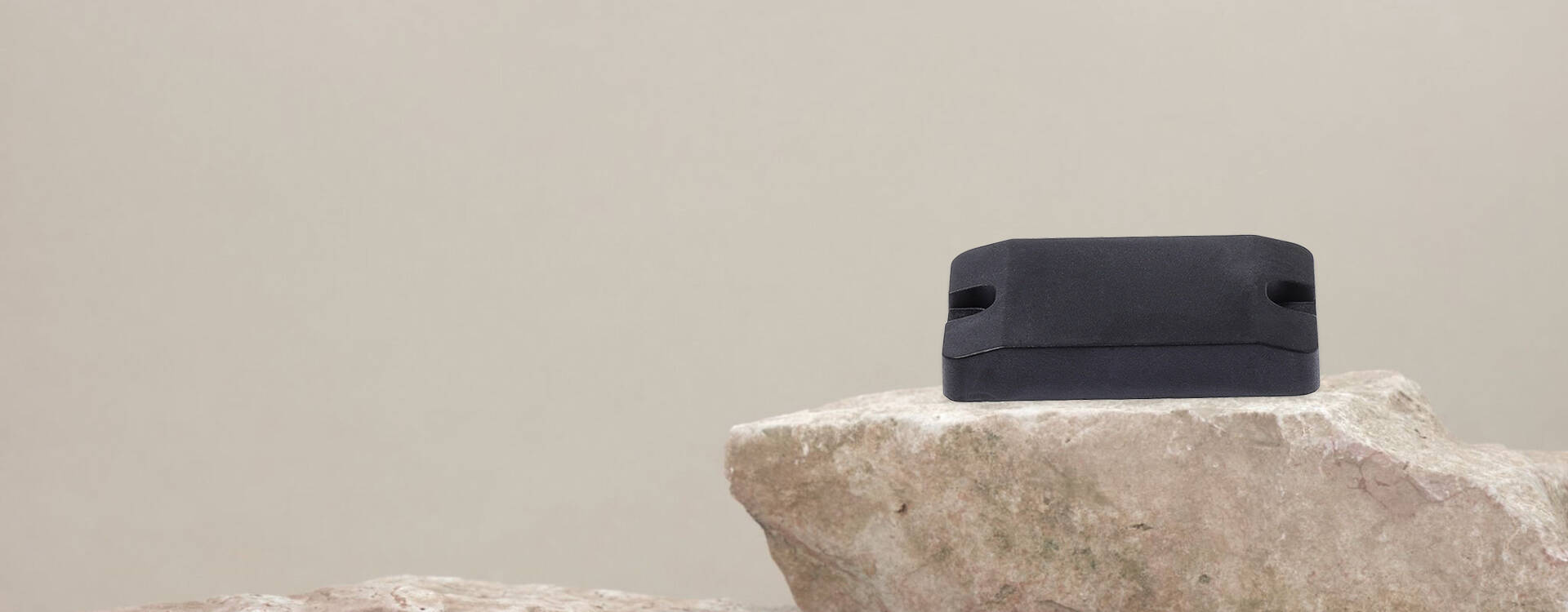

A sturdy and corrosion-resistant label with dimensions of 46×31mm, weighing 21 grams, supports various mechanical installations. The farthest reading distance on the metal surface is 6.0 meters. It can withstand temperatures up to 200℃ and strong acids and bases with a pH range of 0-14. It is suitable for harsh industrial environments such as heavy equipment and pipelines.
/
High-Temperature RFID Tags
Features
-
150MPa Compressive -
6 Meters -
IP68 Protection Rating -
200℃ Resistance -
Full pH Resistance: 0-14 -
Screw/Rivet/Cable Tie
Specifications
-
Physical Features
Model GZY-A105 Size 105(L)x30(W)x7.5(H)mm, (Hole:D5.2mmx2)
Material ABS+PC
Working Temp -25~+85℃
Storage Temp -40~+85℃
Installation Methods Adhesive, Screw, binding
Package details 500Pcs/bags
Weight 26.0g
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, 9，Impinj M730
EPC Memory 96-128bit, TID:64bit
Read distance 1-2.6.0m, On Metal Surfaces (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
