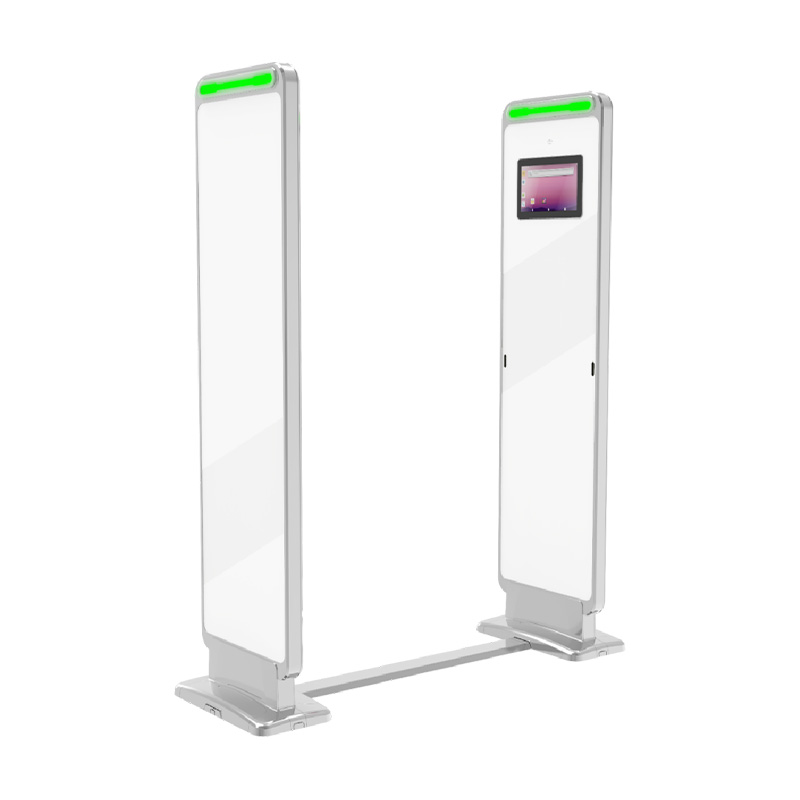

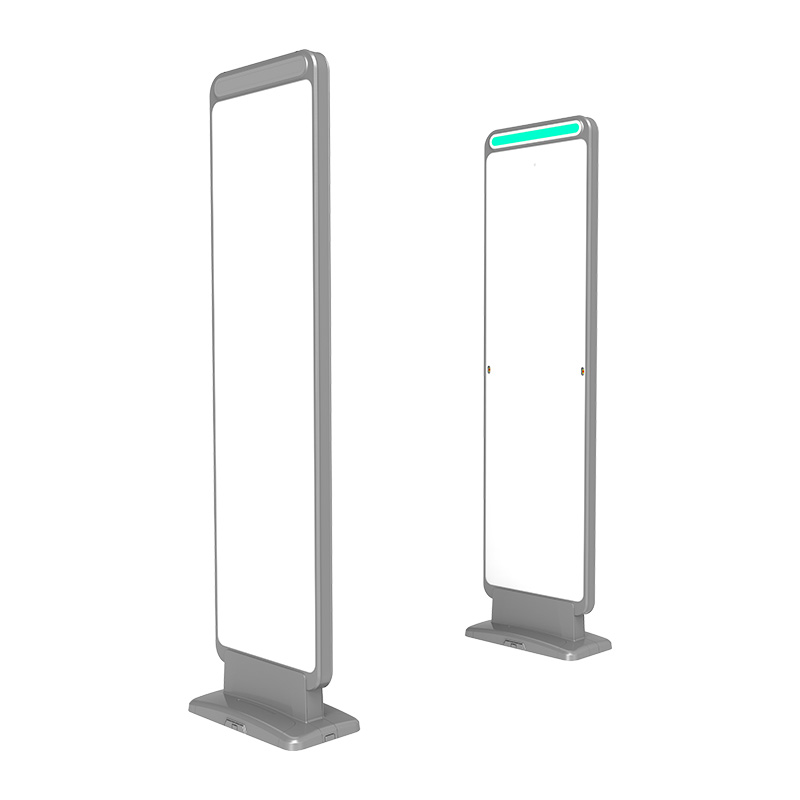

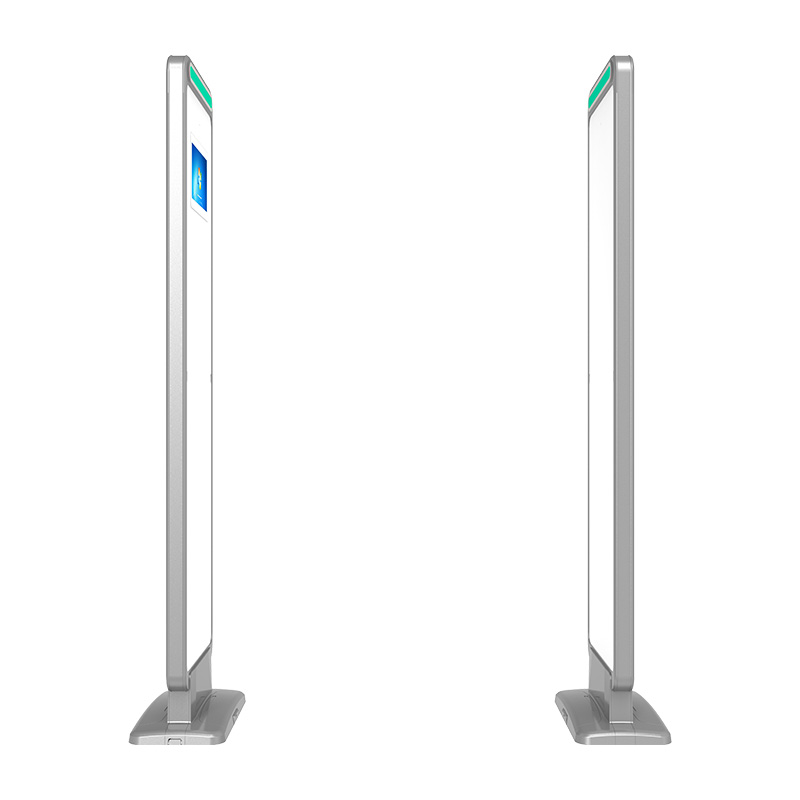

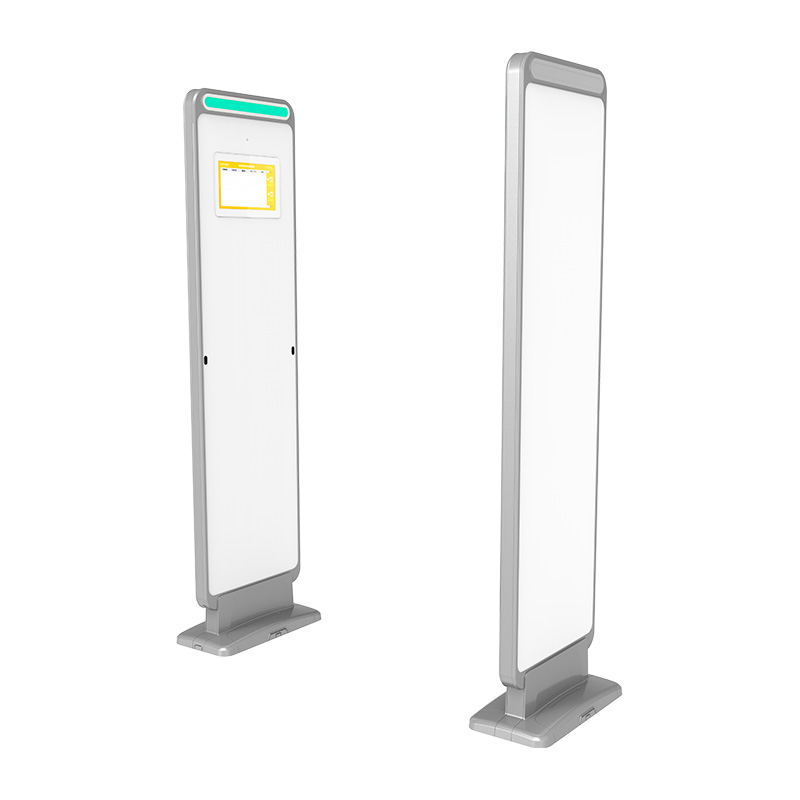

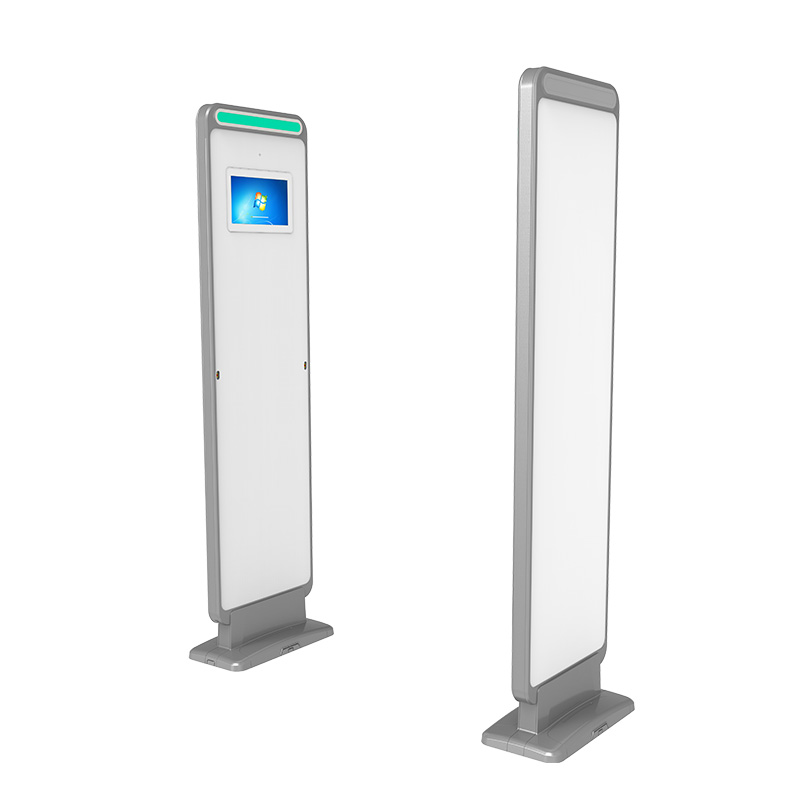

GZY-CT4
Long - range UHF RFID gate reader
Vertical access control design, equipped with a 10.1-inch touch screen as an optional feature. It can display tag information and personnel count in real time. The reading range is 0-3 meters. It supports infrared triggering and offline alarm. It is suitable for entrances and exits in libraries, archives, supermarkets and other places that require visual management.
/
Long - range UHF RFID gate reader
Features
-
Reliable Multi-Tag Reading -
WiFi/4G Communication Support -
Audible & Visual Anti-Theft Alarm -
ISO 18000-6C Standard -
Optional Touchscreen Real-Time Display -
Infrared Triggered Auto-Sensing
Specifications
-
RFID Performance
RFID Frequency 865-868Mhz /902-928Mhz(customized) Air Interface Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C Reader Chip IMPINJ E710 RF Output 0-30dBm(adjustable) Reading Distance 0-5m(adjustable) Inventory Tag Peak Speed > 700 Pcs/Second
Alarm LED Indicator Way of Working Automatic mode, trigger mode, interactive mode, etc. Antennas 4 SMA antenna ports, 7dbi circular polarization antenna System Support Windows / Android (optional)
Communication Interface TCP/IP、RS232、optional 4G/WiFi Hardware N29 CPU, 2G RAM, 32G ROM,RK3288 CPU, 2G RAM, 8G ROM (optional)
Application Software interface(SDK) Provide with API SDK and C#, Java application routines Output Power Accuracy +/- 1dB
Input Power Accuracy +/- 0.2dB -
Physical Performance

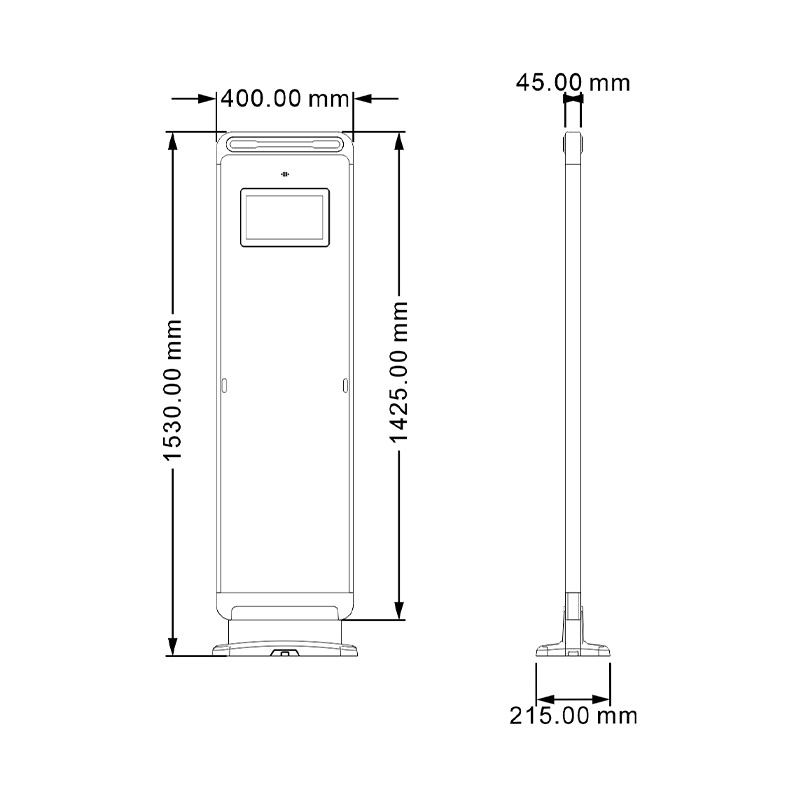

Dimensions 1555mm*426mm*45mm Power Supply AC110-220V 50Hz 150W Metrial Carbon steel plate Humidity 5% to 95%, non-condensing
Operating Temp. -10℃ to +60℃ Storage Temp. -20℃ to +70℃ Weight 36KG
Applications
