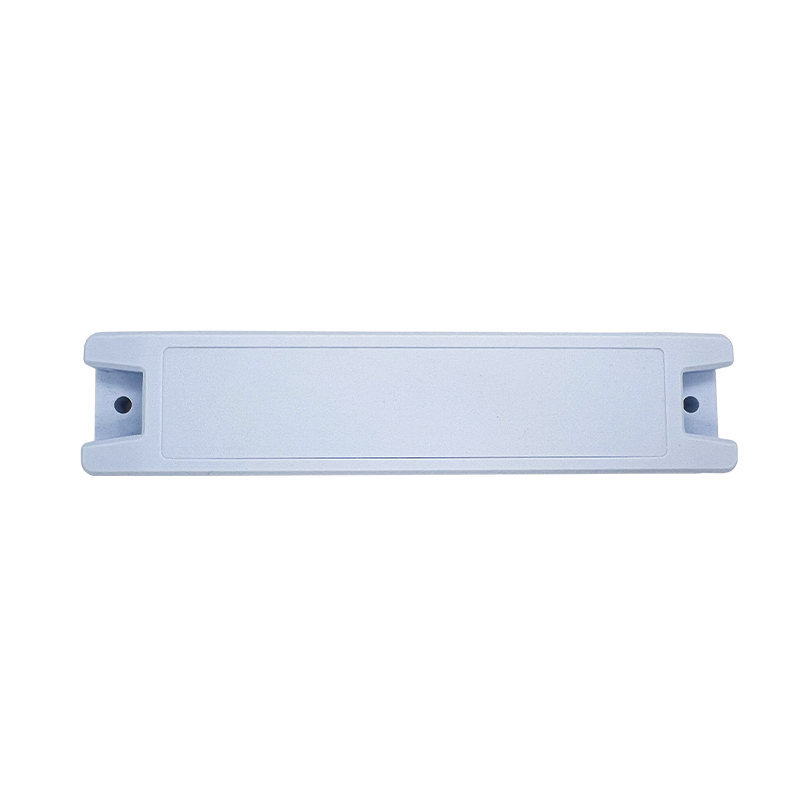

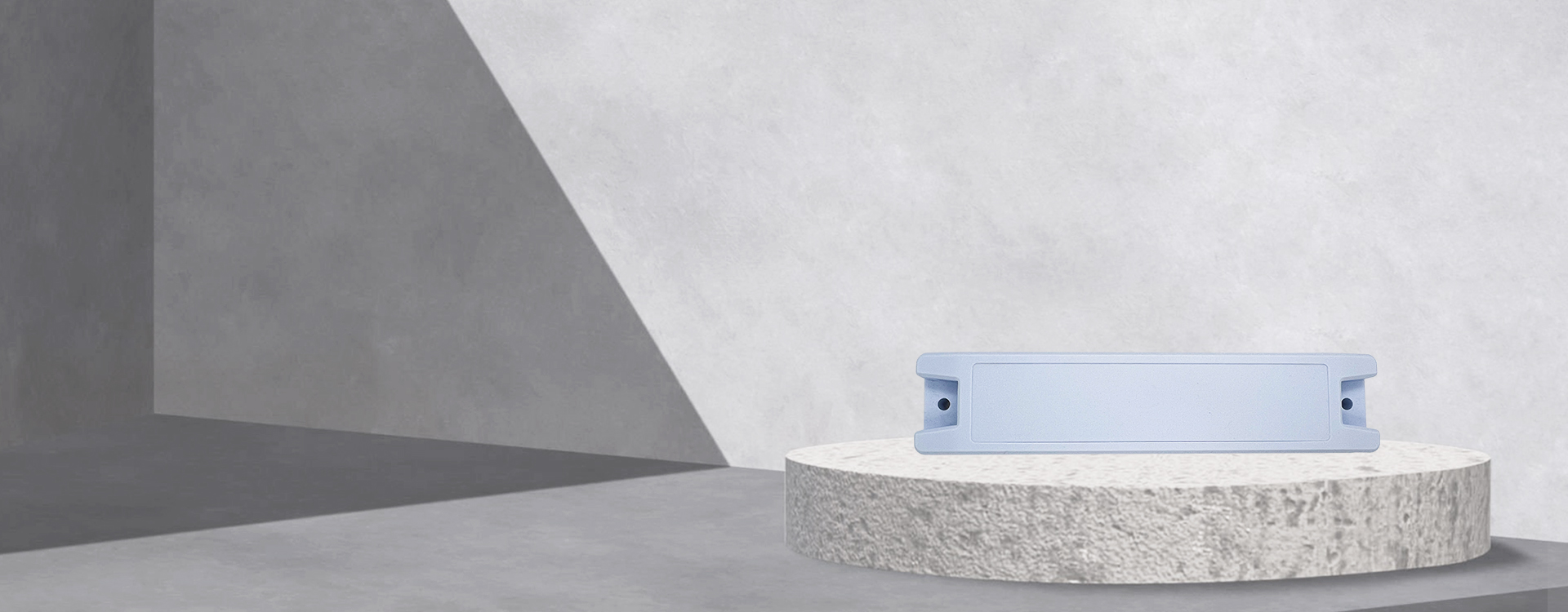

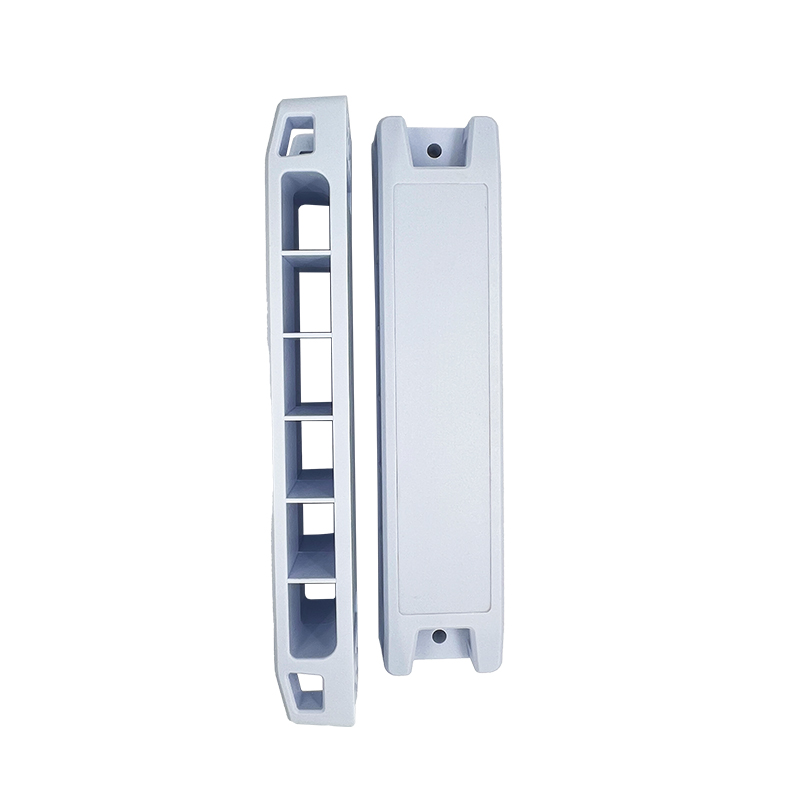

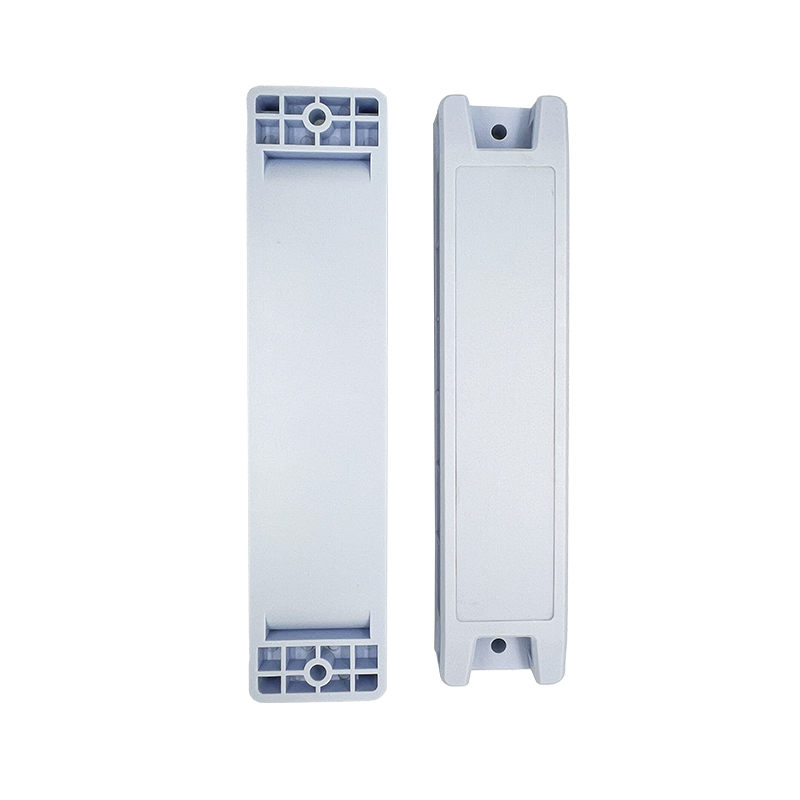

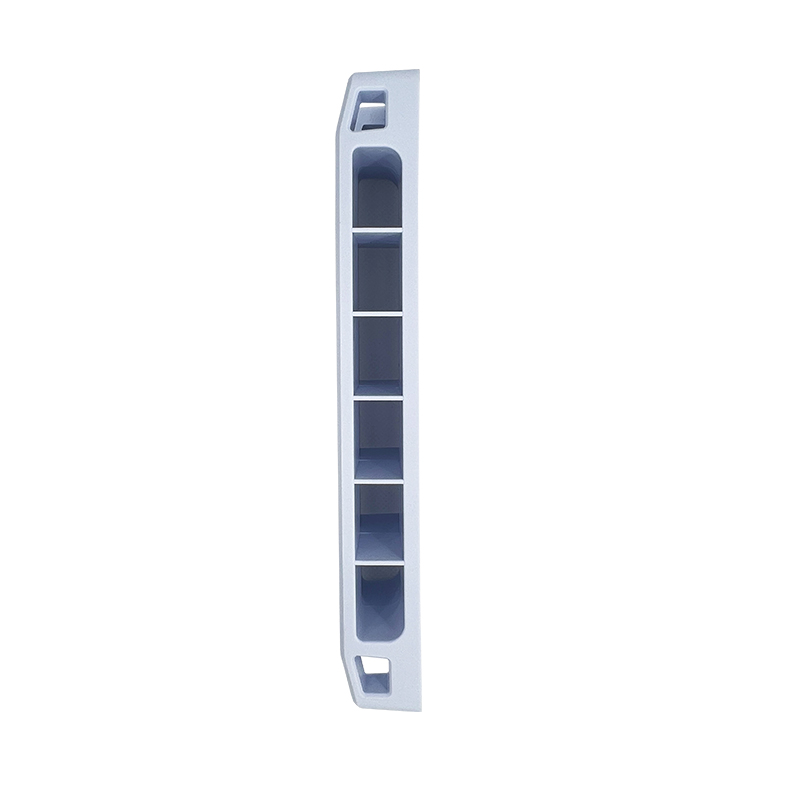

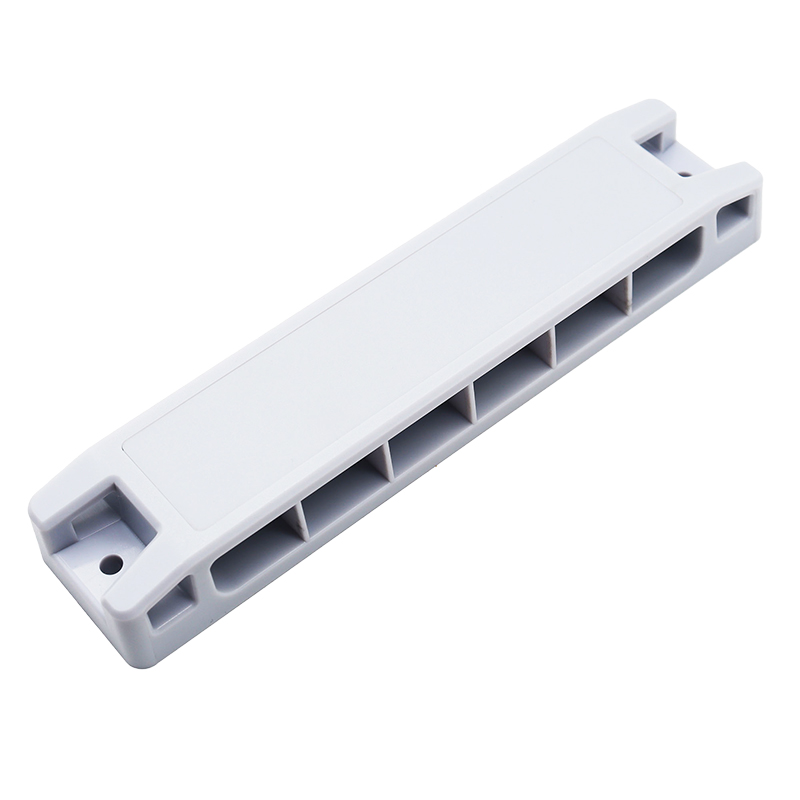

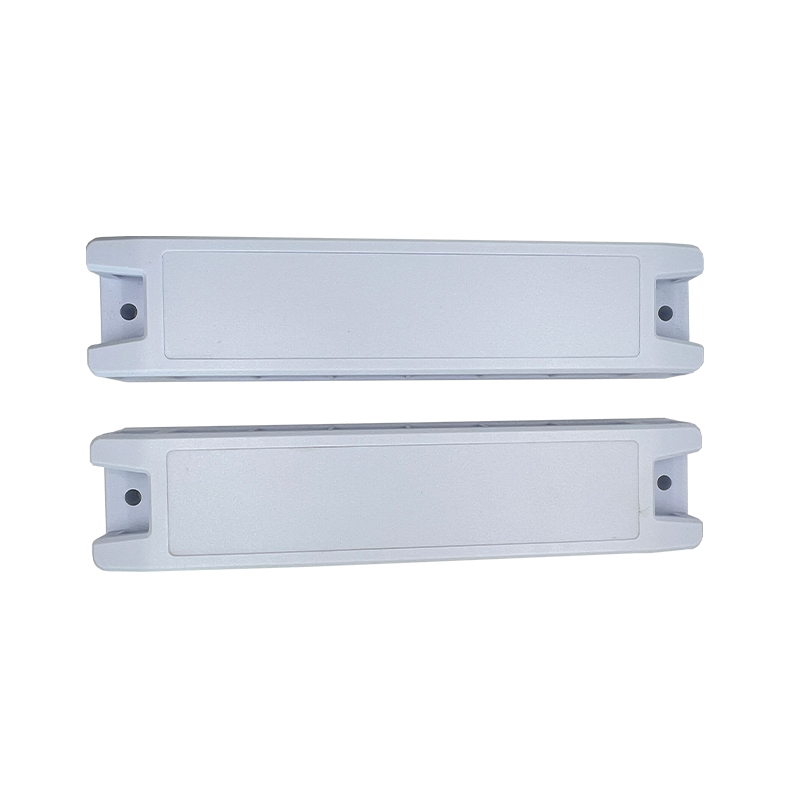

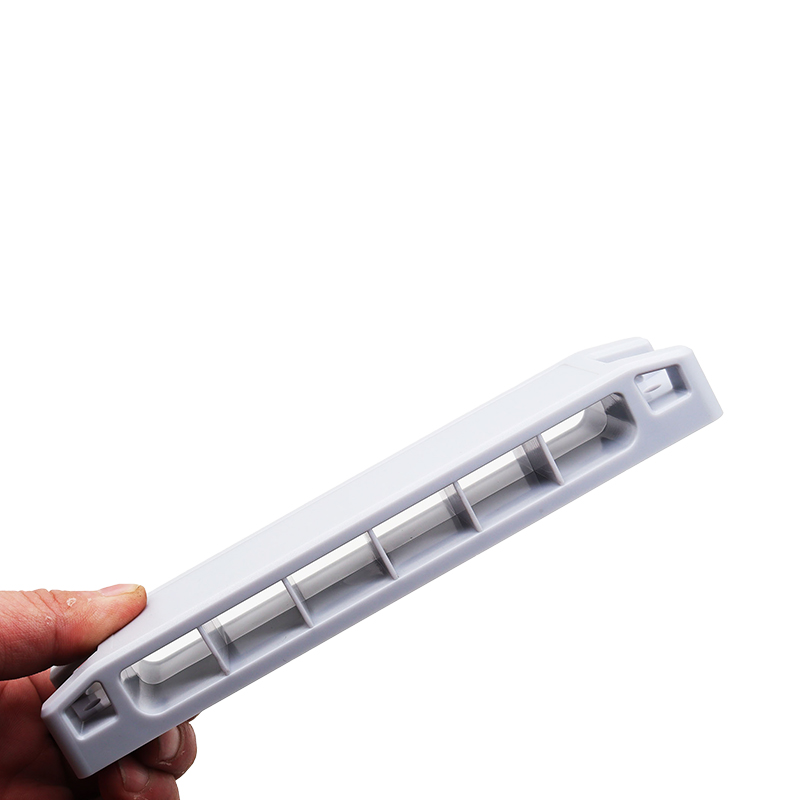

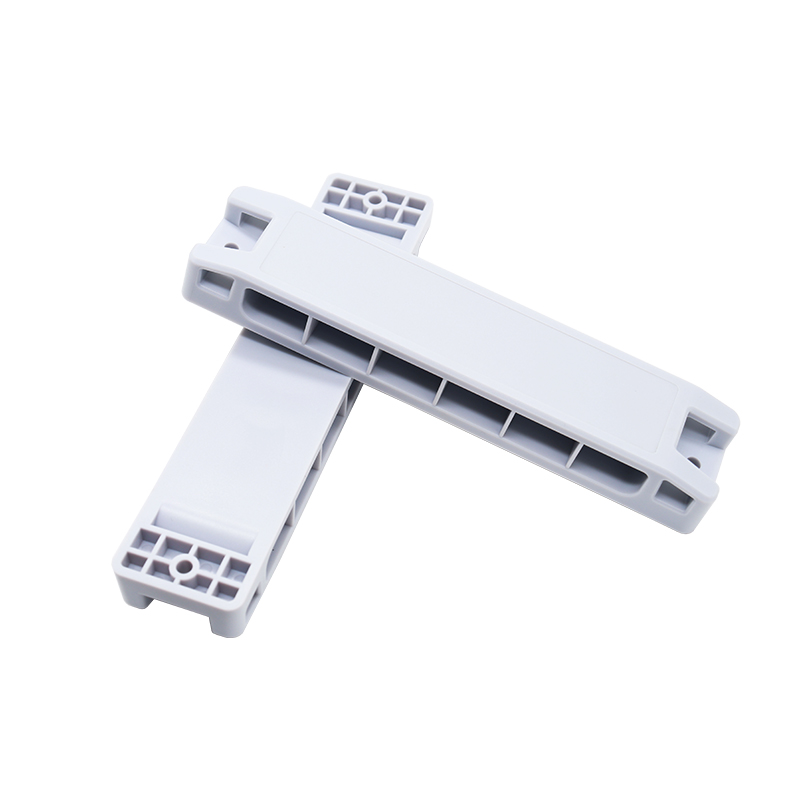

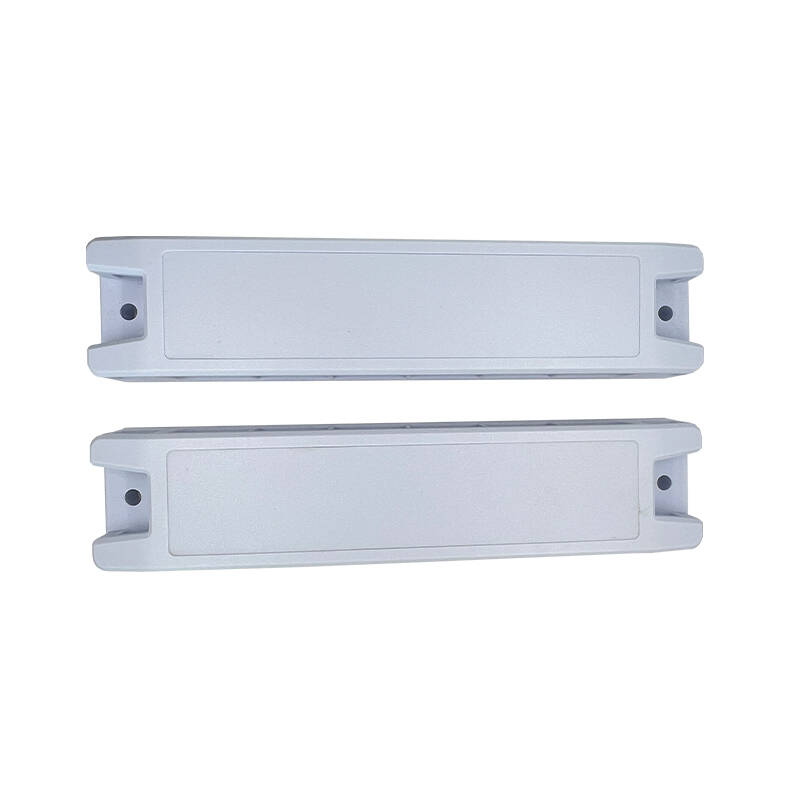

GZY-A20043
35m Long Distance RFID Hard Metal Tags
The GZY-A20043 is a high-performance industrial RFID tag engineered for the most demanding asset tracking environments. With a superior IP68 protection rating, this tag is fully waterproof, dustproof, and resistant to extreme outdoor conditions.
/
Rugged RFID Tag
Features
-
Large 200x43mm -
Maximum 35 Meters -
IP68 Protection Rating -
Memory Expandable up to 480bit -
Operating Temperature: -40℃ to +85℃ -
Adhesive/Screw/Rivet/Cable Tie
Specifications
-
Physical Features
Model GZY-A20043 Size 200(L)x43(W)x9.5(H)mm
Material ABS
Working Temp -25~+85℃
Storage Temp -40~+85℃
Installation Methods Adhesive, Screw, binding
Package details 500Pcs/bags
Weight 105
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type IMPINJ M781
EPC Memory 128bit, USER:96bits/TID:64 bits
Read distance 1-36.0m, On Metal Surfaces (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
