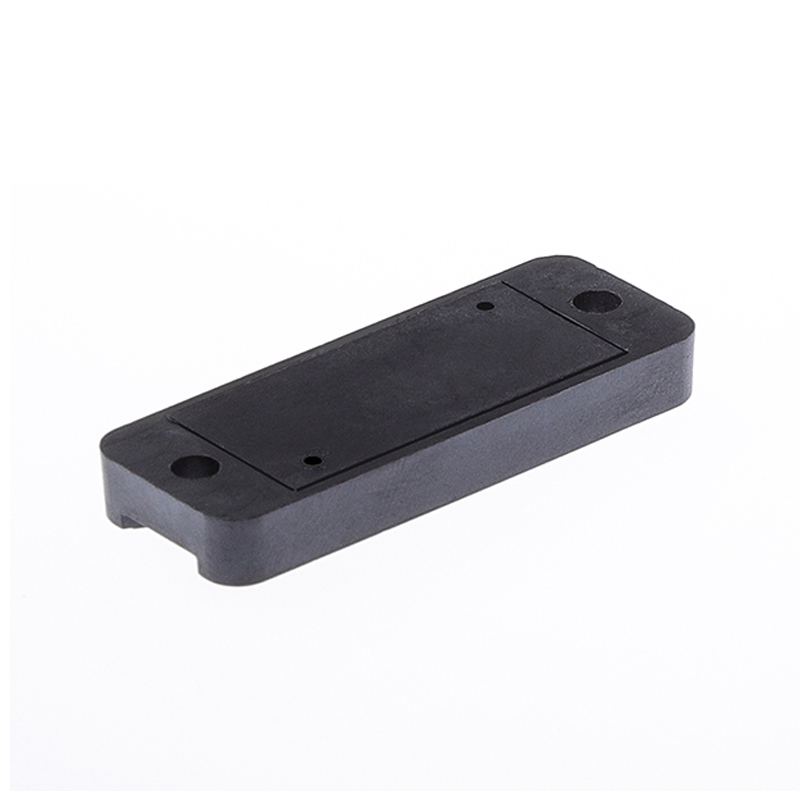

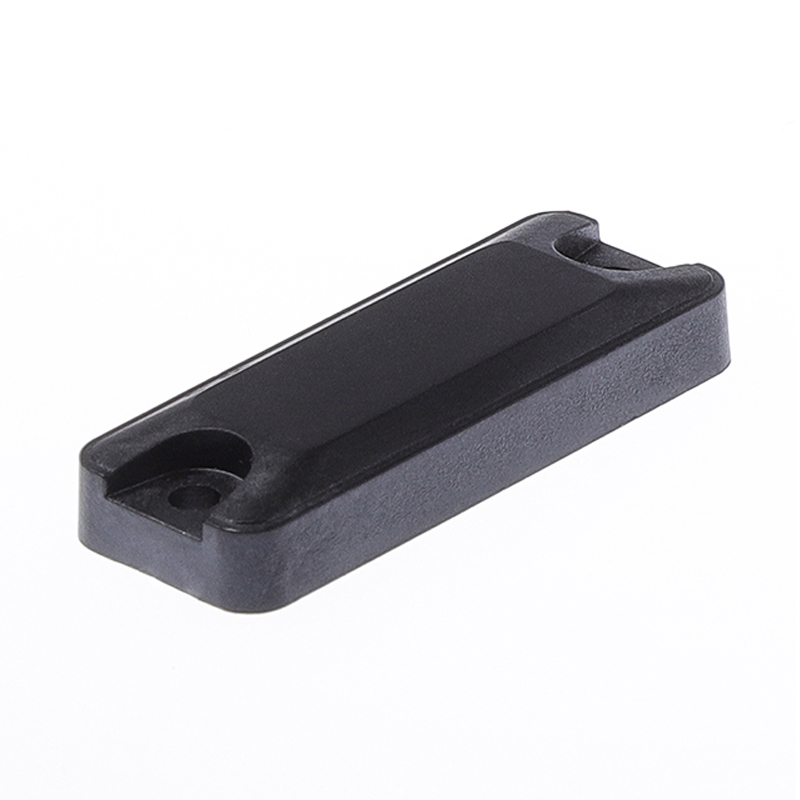

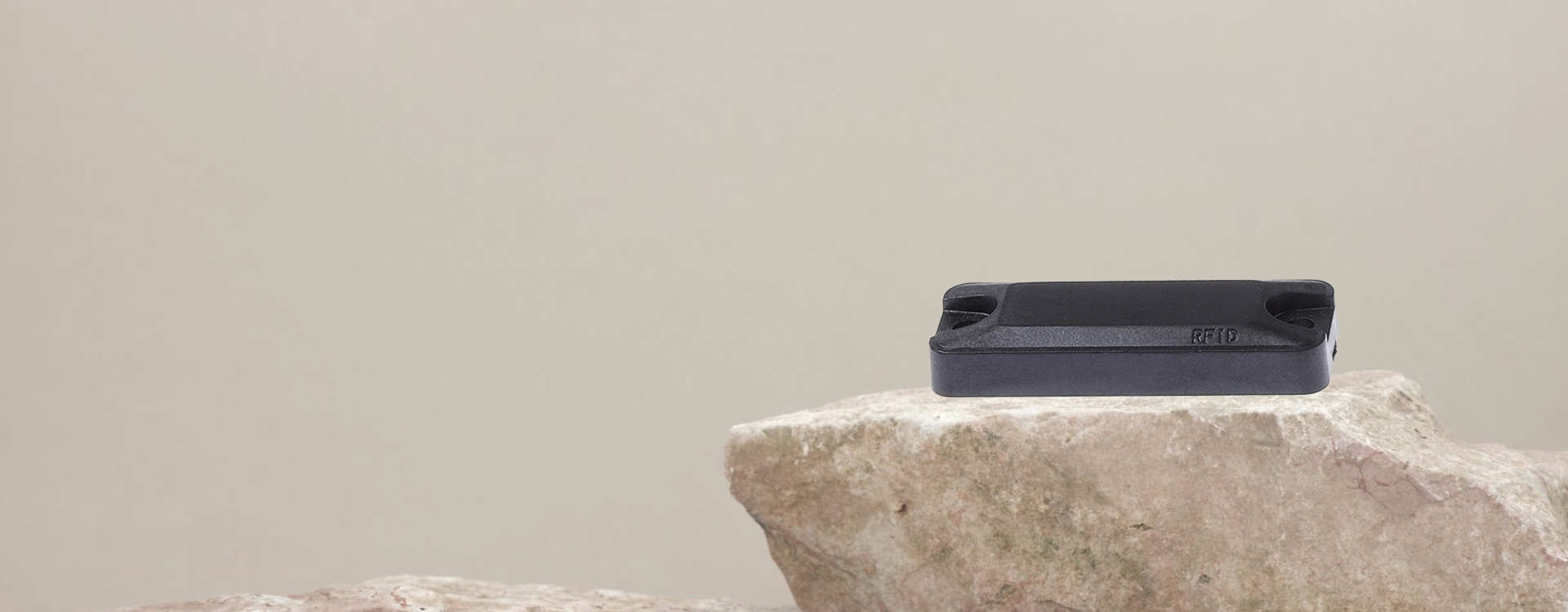

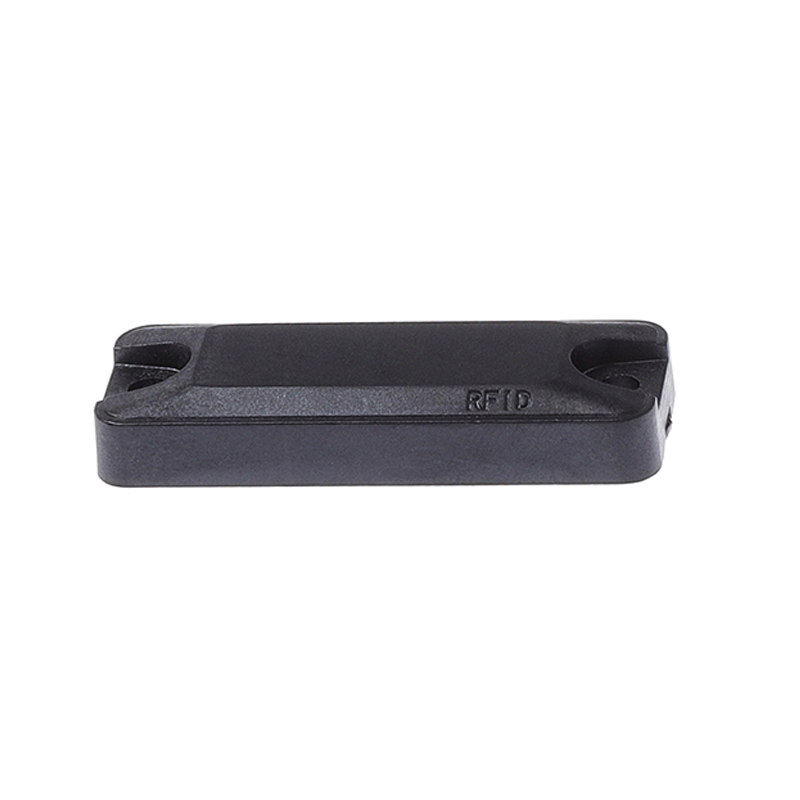

GZY-N3714
Industrial Grade UHF RFID Tags
High-temperature and corrosion-resistant labels, with dimensions of 37×14mm, can operate at a maximum temperature of 200℃ and withstand a pressure of 150Mpa. The farthest reading distance on metal surfaces is 5.0 meters. They support installation via screws, rivets, or adhesive backing, and are suitable for mid-range identification scenarios in high-temperature furnaces, chemical pipelines, etc.
/
High-Temperature RFID Tags
Features
-
150MPa Compressive Strength -
5 Meters -
IP68 Protection Rating -
PH 0-14 -
Max 200℃ -
Screw/Rivet/Adhesive
Specifications
-
Physical Features
Model GZY-3714 Size 37x14mm, Hole: D3mmx2
Material PEEK
Working Temp -40~+200℃ Storage Temp -60~+260℃
Installation Methods Adhesive, Screw, binding
Package details 500Pcs/bags
Weight 7g
Colour Black (Red, Blue, Green, White)
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, 9
EPC Memory 96-128bit, TID:64bit
Read distance 1-5m, On Metal Surfaces (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
Applications
