RFID Features
|
Frequency |
(US) 902-928MHz, (EU) 865-868MHz |
Air Interface Protocol |
EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| Reader Chip | IMPINJ R2000 / E710 / E510/E310 | RF output | 0 – 33dBm（adjustable） |
| Output Power Accuracy | +/- 1dB |
Input Power Accuracy |
+/- 0.2dB |
|
Receiving sensitivity |
≤±20ppm | Communication interface | TCP/IP、RS232、RS485、Wiegand26/34 interface |
| Application software interface | Provide API development kit and application routines | Reading range | 0-5m（adjustable 4dbi antenna built-in） |
| IP Rating | IP68 |
Physical Parameters
|

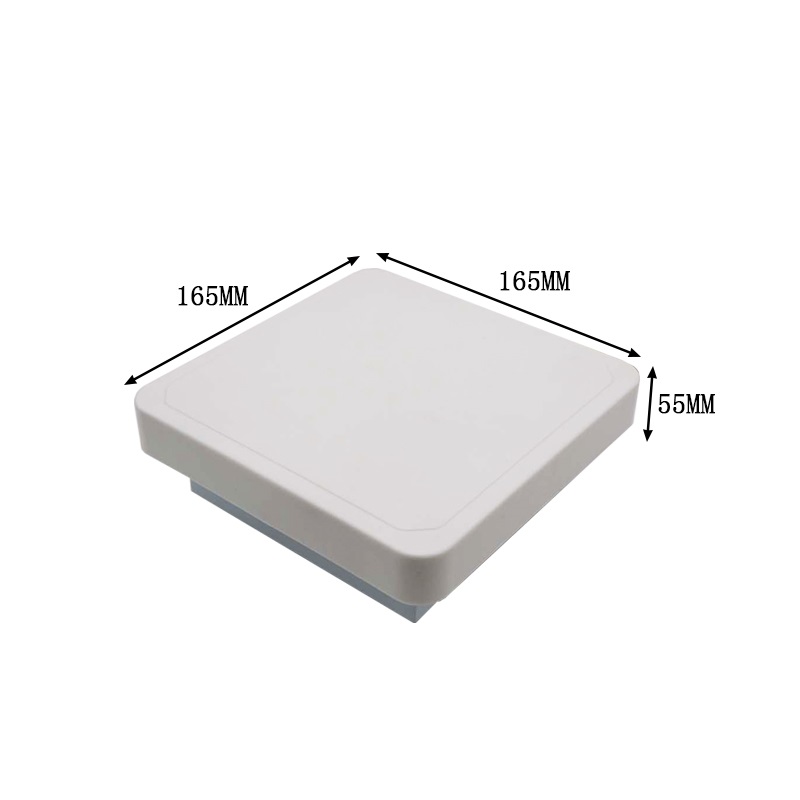

Demension |
165mm(L) x 165mm(W) x55mm(H) |
Material |
ABS + aluminum alloy |
| Power supply | With 220V AC input, the output of +12 V/3A DC power converter | Working power consumption | ≤11W |
| Weight | 0.45 Kg | Humidity |
5% to 95%, non-condensing |
| Working temp | -20℃ to +70℃ | Storage temp | -30℃ to +85℃ |
| Heat dissipation method | Air cooling | Protection class | IP67 |
1.RFID reader, integrated antenna integrated design; IP67 protection level, suitable for harsh outdoor environments;
2.Fully support electronic tags that comply with EPC global UHF Class 1 Gen 2 / ISO 18000-6C standards
3.Working frequency 860-868MHZ, 902-928MHZ
4.Support RS232, RS485 and RJ45 communication and other methods;
5.Support multiple working modes such as active mode, command mode and trigger mode;
6.The reader provides optically isolated input and output I/O interfaces, which is c
2.Fully support electronic tags that comply with EPC global UHF Class 1 Gen 2 / ISO 18000-6C standards
3.Working frequency 860-868MHZ, 902-928MHZ
4.Support RS232, RS485 and RJ45 communication and other methods;
5.Support multiple working modes such as active mode, command mode and trigger mode;
6.The reader provides optically isolated input and output I/O interfaces, which is c
GZY-605 UHF Integrated Intelligent RFID Reader
