RFID Specifications
|
Frequency |
(US) 902-928MHz, (EU) 865-868MHz |
Air Interface Protocol |
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C/6B |
| Reader Chip |
Impinj E710 |
RF Output | 0 – 33dBm（adjustable） |
|
Peak SPeed |
> 600Pcs/second | Read range | 0-4m (adjustable) |
| Input/Output (GPIO) | 2-way input optical coupling 2-output optical coupling | Alarm | LED Indicator (Green: Normal use; Red: Anti-theft alarm) |
| SDK | Provide with API SDK and C#, Java application routines |
Physical Specifications
|
Dimension |

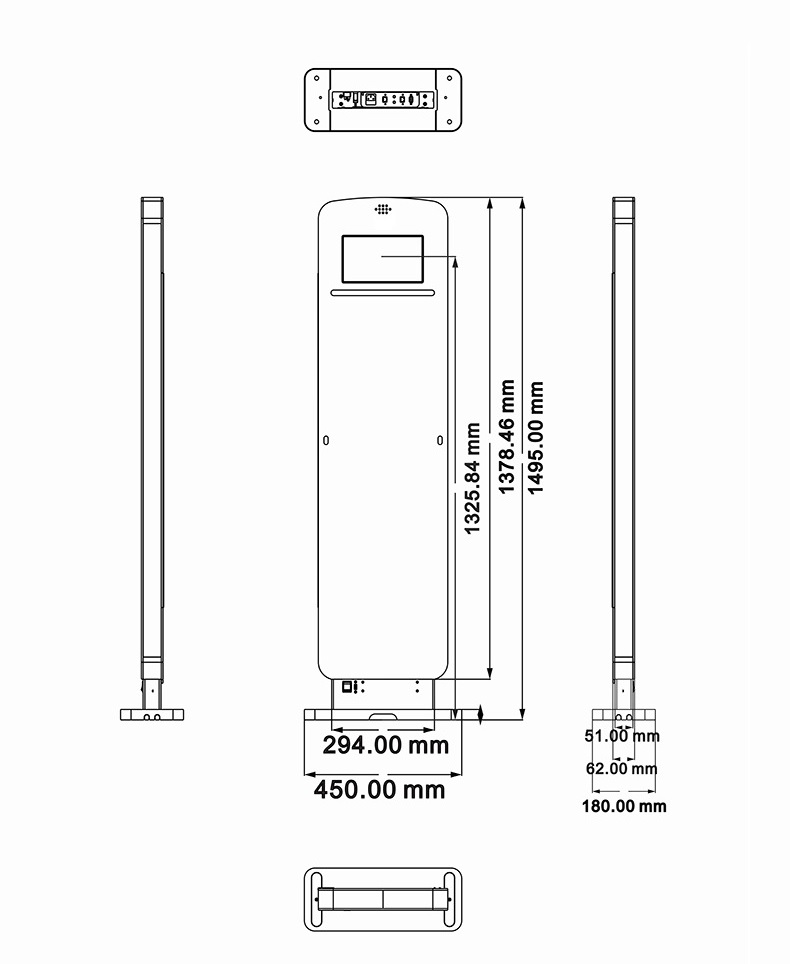

1484(L) x370(W) x 62(H) (150mm-height of bottom） |
Screen |
10.1 touch screen(optional) Windows&Android system optional |
| Material | Aluminum alloy frame, light, strong and not easy to deform; acrylic surface material | Communication interface | Ethernet interface |
| Weight | 3.5kg(Set) |
Environment
|
Working temp |
-20℃ to +50℃ |
Storage temp |
-20℃ to +65℃ |
| Humidity | 5% to 95%, non-condensing |
GZY-C10 powered by Impinj RFID chip and comforts with ISO18000-6C (EPC C1G2) protocol.
●It is integrated with sound and light alarming, and can use online / offline EAS alarming.
●It supports for multi-tag reading, and uses infrared trigger reading mode, supporting for the statistics of people entry and exit.
●It is integrated with sound and light alarming, and can use online / offline EAS alarming.
●It supports for multi-tag reading, and uses infrared trigger reading mode, supporting for the statistics of people entry and exit.

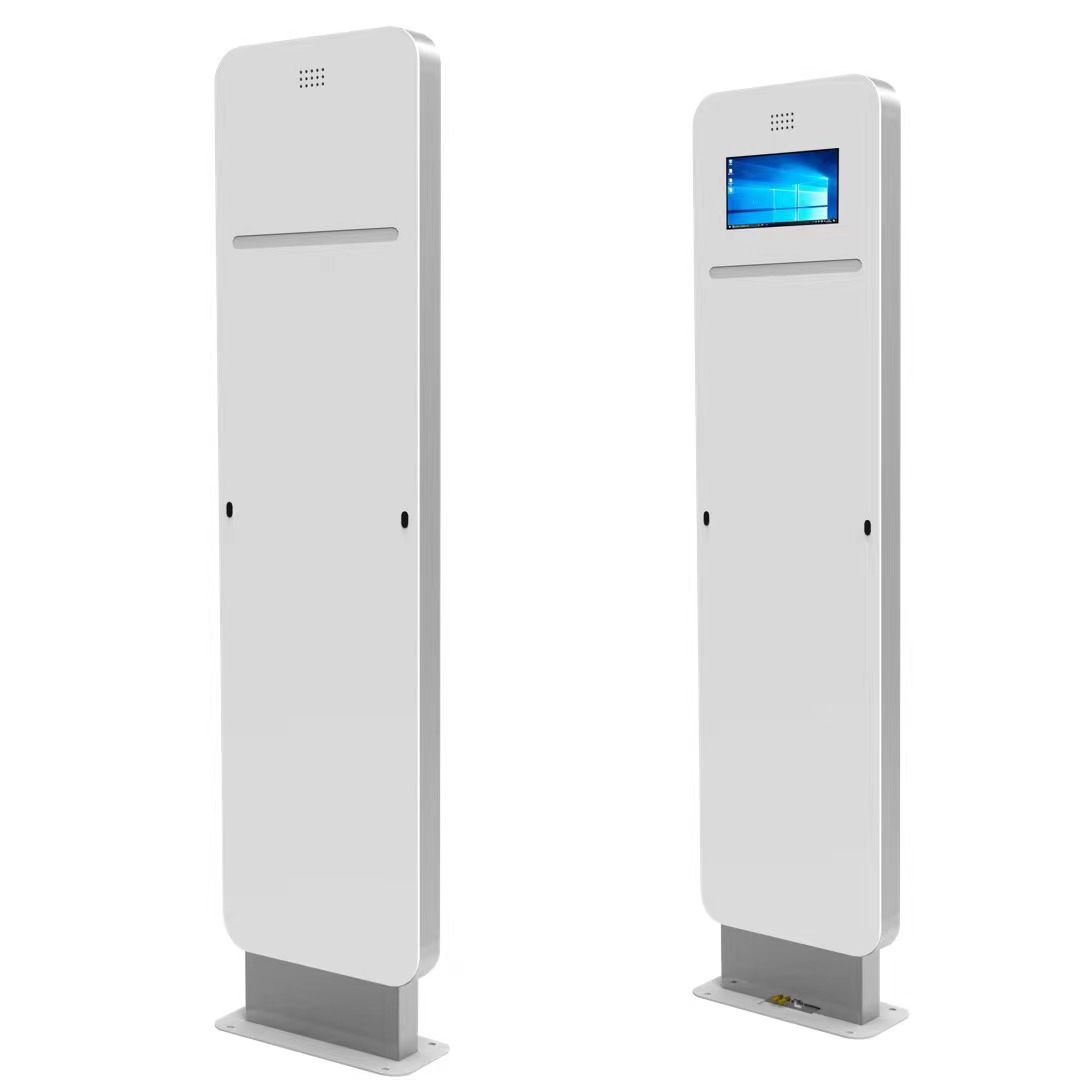

GZY-C10 UHF RFID Gate Reader
