▍▍Specifications

Product Description
AntiUV andagingresistancedesign;Outdoor service life≧10 years

Unique TID Number

Support Custom Size

Data Storage≧50Years

Color can be customized

100%passtheTagformacereadperformance test once



Application
Metal Tool Management Gas Cylinder tracking
Medical Instrument Management Container management

Management of indoor and outdoor metal and non-metal assets





RFID Features



Working Frequency 865-868, 902-928Mhz Data Storage ≥50 years
Protoccol Standard EPC CLASS1 Gen 2/ISO18000-6C Re-Write  >100,000times
Chip Type UCODE 8/9 /M730 Memory EPC:96bit/expandable480bits
Read distance 1-5.5m (depend on reader performance) USER:0/512bits/TID:64 bits



Physical Features



Size

 40*28*13mm,Copper wire length 300mm (customizable) Installation Methods Seal

Material

-40℃~+85℃ VESD ±2kV
Storage  Temp -40℃~+85℃ Alcohol test 95% alcohol test passed
storage Humidity 5%-95% Gasoline test Passed
IP Rating IP68 Customized Surface laser, printing LOGO, serial number, Encoding, etc.
Material Engineering plastic ABS + steel core Drop test 1.5 meters high 200 drop tests passed
Colour White、Black、Blue、Red (customized) High&lowtemperature shock test -40 ℃ ~ +70℃, 7 cycles, total 48 hours
 Weight 17g Profermance 100% function tested by Voyantec Tagformace
Application On-metal surface  Warranty 1 year



Dimensions:(mm)









*GZY-Z4028 it complies with EPC Gen2 (ISO18000-6C) standard, operating frequency is 860-960mhz, and has a unique global identification code (TID code);

*Highly durable, long recognition distance, convenient and quick application;

*It has been widely used in RFID inventory management, supply chain management, product authentication, asset tracking, and logistics management...
Get Quote

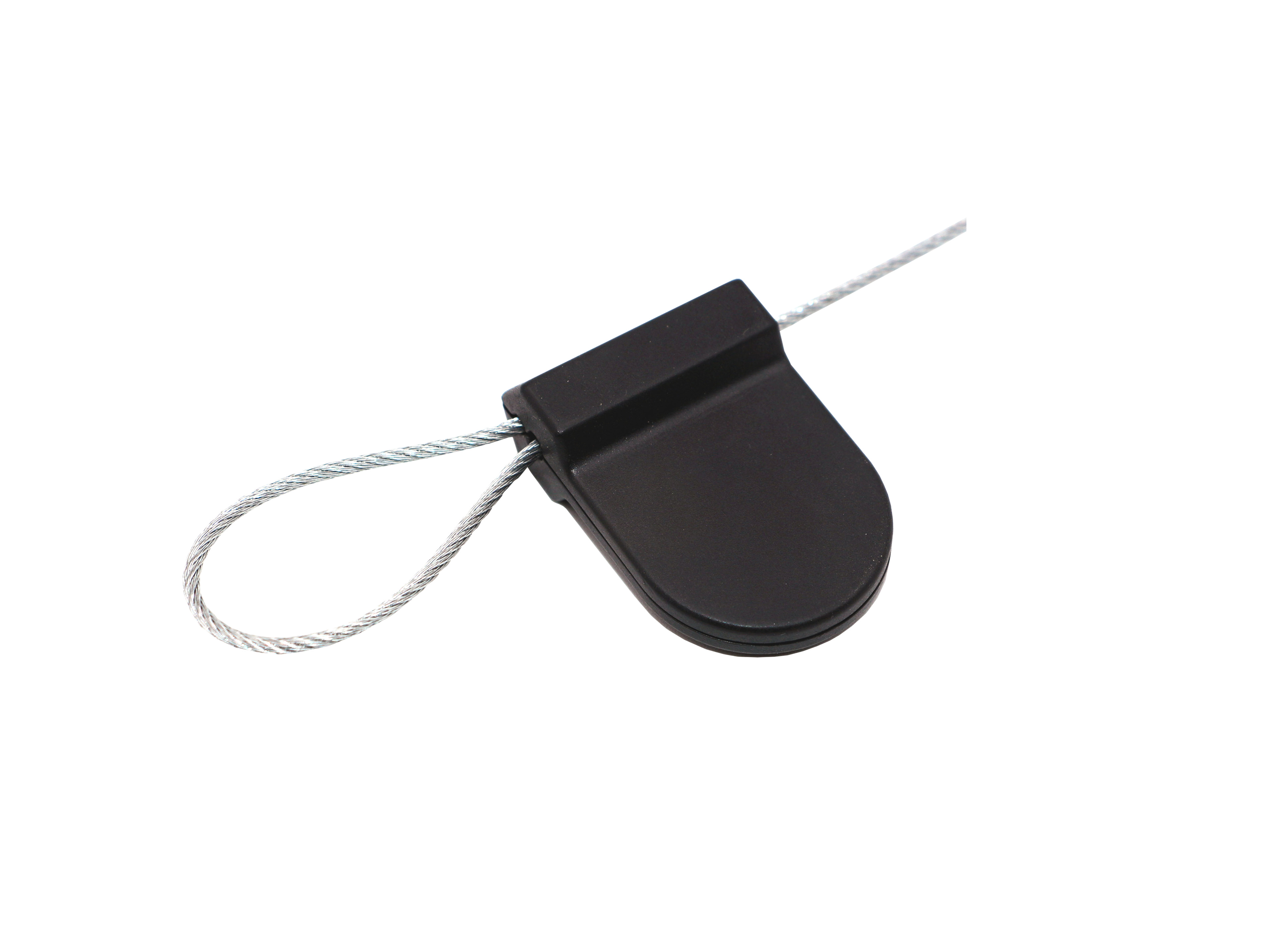

GZY-Z4028 RFID Anti-Theft Security Seals Tag
