RFID Features
|
Frequency |
(US) 902-928MHz, (EU) 865-868MHz |
Air Interface Protocol |
EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| Reader Chip | IMPINJ R2000 / E710 | Frequency modulation | FHSS or fixed-frequency, can be set by software |
| Output power | up to-30 dBm（adjustable）；50Ω |
Tag Peak Speed |
> 700 Pcs/Second |
|
Label buffer |
1000Pcs Tag @ 96 bit EPC | TAG RSSI | Support |
| Working Mode Output | Activemode, Answermode | The number of antennas | 1、2 、4 、8port TNC antenna connector optional |
| RF Connector | TNC/RP-TNC | Communication interface | RS-232 , TCP/IP, USB（Slave）、WiFi (optional) |
| Communication rate | Serial rate 9600～115200bps, RJ45 is 10Mbps，wiegand26/34 | Secure firmware upgrade | The upgrade mechanism can be extended |
| Input / output (GPIO) | 2 inputs, 2 output | Application software | Supply API SDK and VC and VB, Java application routines |
Tag Operation Performance
|
Reading range |
9dbi Antenna configuration, read range: 3 to 25 m (depends on tag) |
Output Power Accuracy |
+/- 1dB |
| Input Power Accuracy | +/- 0.2dB | Receiving sensitivity | < -85 dBm |
Physical Parameters
|
Demension |
268mm(L) x 181mm(W) x 28mm(H) |
Material |
Aluminum Alloy |
| Power supply | With 220V AC input, the output of +12 V/3A DC power converter | ||
| Lightning protection 6800V pulse (optional) | |||
| Weight | 1.2Kg | Humidity |
5% to 95%, non-condensing |
| Working temp | -20℃ to +55℃ | Storage temp | -20℃ to +85℃ |
| Heat dissipation method | Air cooling | IP rating | IEC IP53 |
1. Support EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B standard electronic tags；
2. Working frequency 860-868MHZ，902-928MHZ(Can be adjusted according to the requirements of different countries or regions)；
3. Support 8 TNC antenna interface;
4. Output power up to 30 dBm (Adjustable), inventory tags peak velocity, > 700 PCS/SEC；
5. Support active ,command and trigger a variety of work modes；
2. Working frequency 860-868MHZ，902-928MHZ(Can be adjusted according to the requirements of different countries or regions)；
3. Support 8 TNC antenna interface;
4. Output power up to 30 dBm (Adjustable), inventory tags peak velocity, > 700 PCS/SEC；
5. Support active ,command and trigger a variety of work modes；

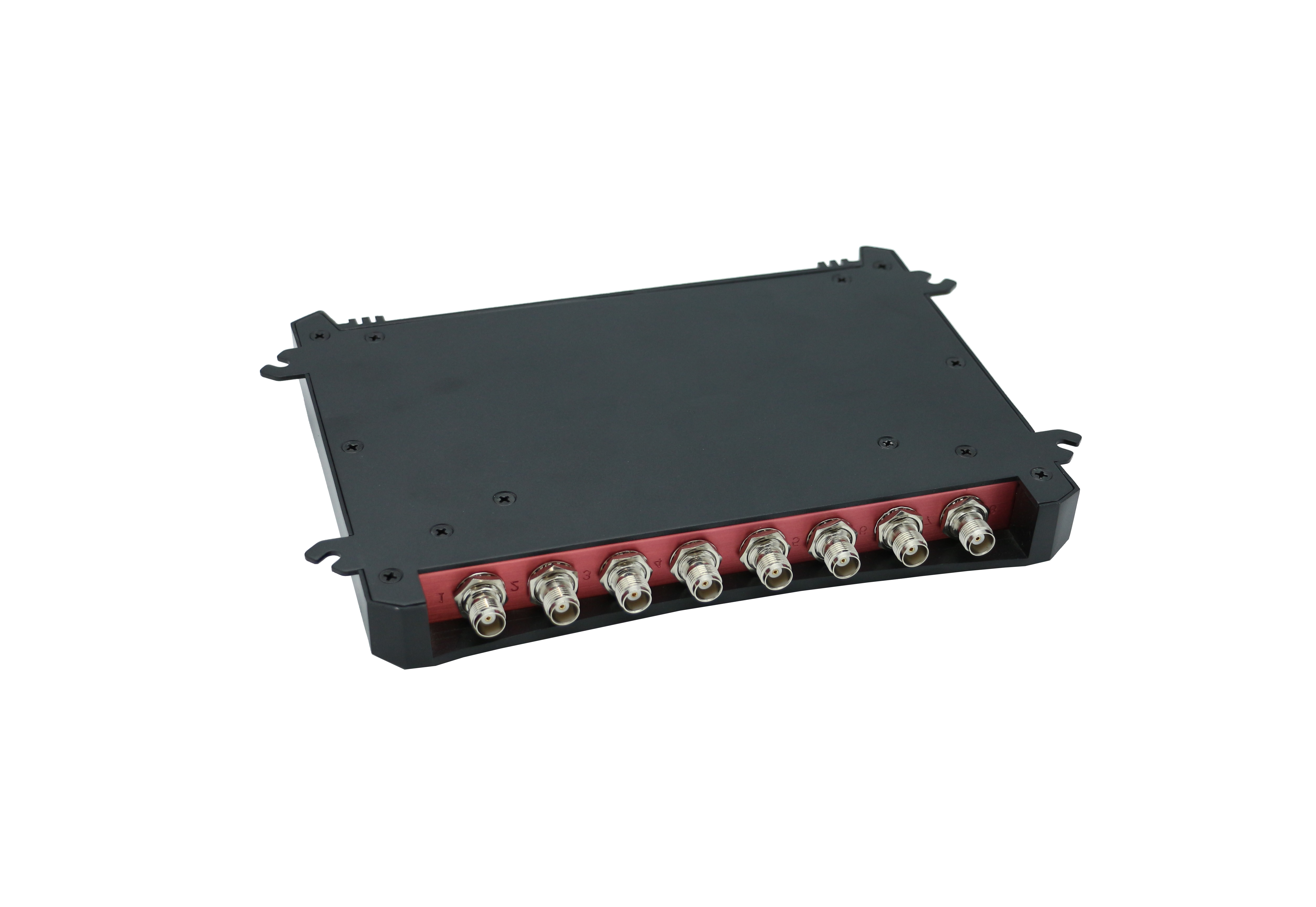

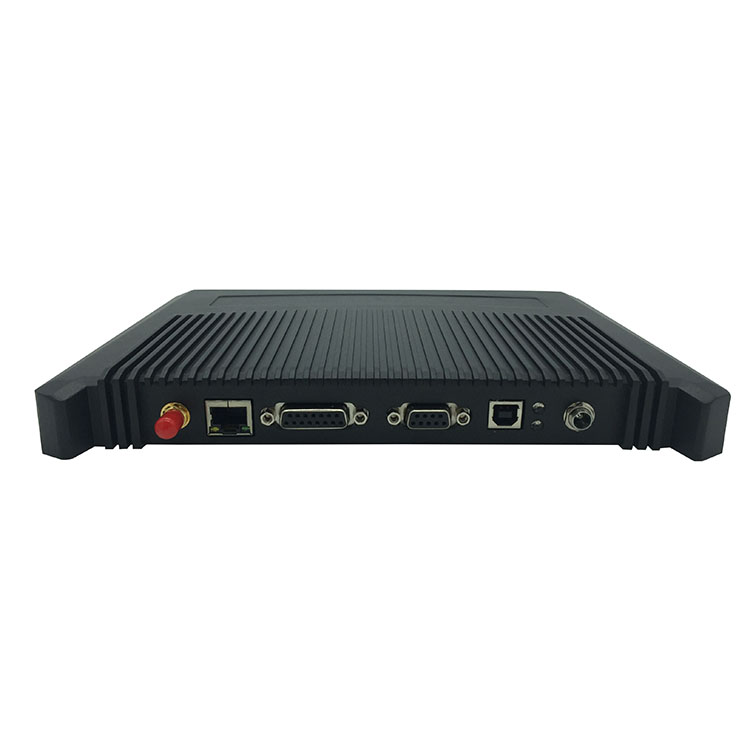

GZY-D880 RFID 8Ports Fixed Reader
